Spanish Sauleda Fabric
Premium acrylic fabric, woven and dyed in Barcelona. 37 colourways, 3-year warranty, built to last 10+ years.
K3 Heritage Mediterranean Awningfrom $580
Customise and priceAwning
K3 Heritage Mediterranean Awning
From $580
All prices include GST.

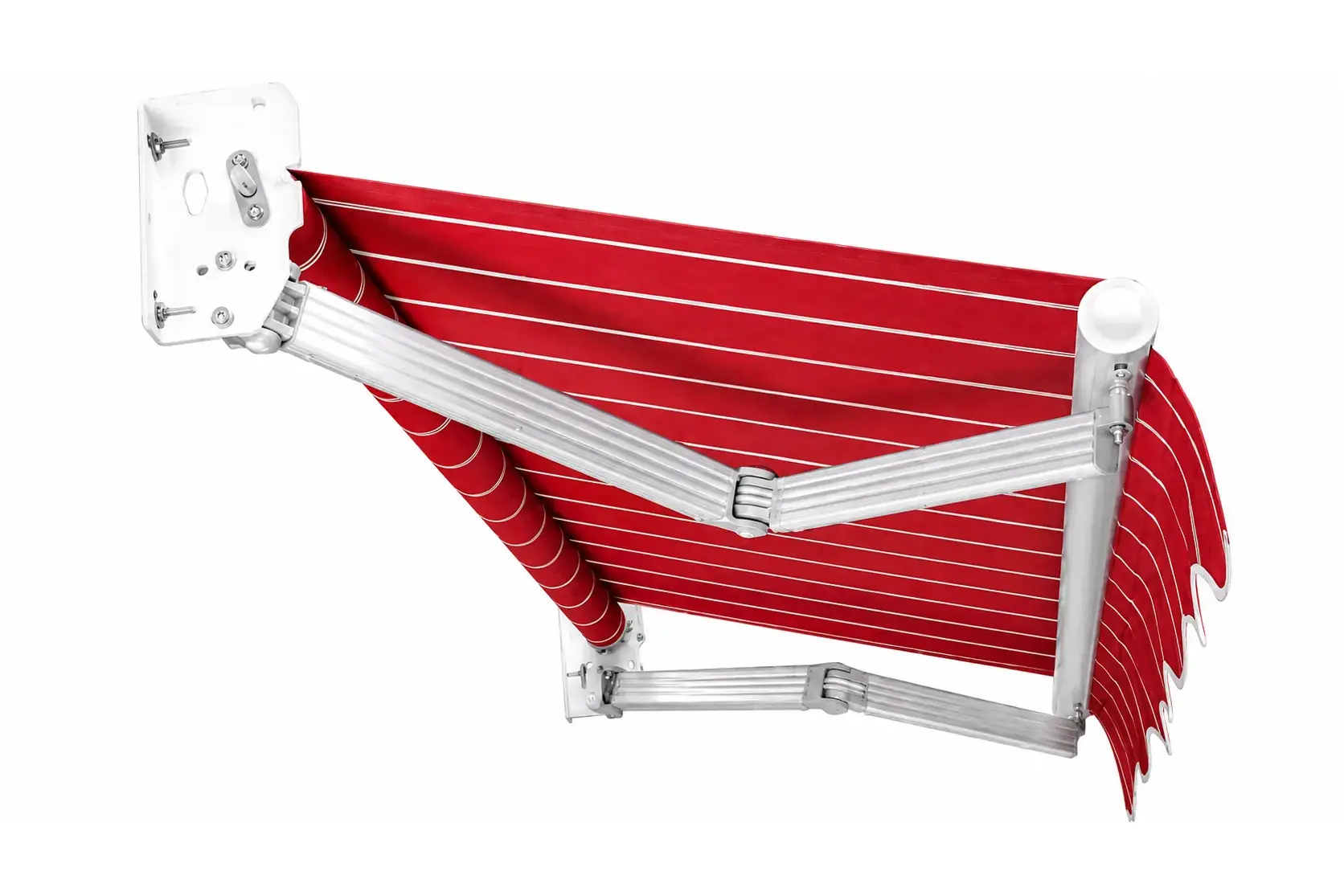

The K3 is the heritage entry-tier of the ASG range - chosen on aesthetic. The traditional pointed (triangular tab) valance is the signature European Mediterranean awning silhouette and reads instantly correct on Federation, period weatherboard, cottage, and Mediterranean villa homes. The mechanism is intentionally simple and proven: aluminium curved arms with double wire links at the joints, thickened arms and joint heads for long service life, and a slim 1.32 mm profile that keeps the system visually quiet against period facades. 6-component arm set - the simplest construction in the range. Maximum coverage from a single set is 6 m wide × 3 m projection. Manual operation. Free delivery to local Melbournians, and a 3-year warranty on the whole awning, fabric included.
View our project gallery5 past projects| Width range | 2.0 m to 6.0 m |
|---|---|
| Projection range | 1.5 m to 3 m |
| Maximum single set (W × P) | 6.0 m × 3 m |
| Minimum single set (W × P) | 2.0 m × 1.5 m |
| Aluminium arm width | 64.15 mm |
| Aluminium arm thickness | 33.06 mm |
| Profile thickness | 1.32 mm (slimmest in range) |
| Cassette enclosure | No - pointed/triangular tab valance |
| Arm mechanism | Double wire link (basic, proven) |
| LED | Not available |
| Component count | 6-part arm set (simplest in range) |
| Operation | Manual |
| Mounting | Wall (standard) or ceiling |
- From $1,000 - free local Melbourne delivery
- Maximum single set: 6 m × 3 m (width × projection)
- Operation: manual
- Pointed / triangular tab valance (Mediterranean heritage style)
- Aluminium curved arms with thickened joint heads
- Double wire link joint mechanism (basic but proven)
- Aluminium arms: 64.15 mm × 33.06 mm
- 1.32 mm slim profile
- 6-component arm set (simplest construction in the range)
- Mounting: wall-mounted (most common) or roof-mounted
- Spanish Sauleda fabric: 19 solids + 18 stripes (10+ years expected life)
- 3-year warranty on the whole awning, fabric included
Charcoal grey is held in stock and can often ship next business day. Everything else is made to order: 2 to 3 weeks up to 3 m, 6 to 8 weeks above that.
The whole awning, fabric included, is covered for 3 years from the date of delivery. It is built to last 10 years or more - that is its expected life, not a warranty term.
Excludes damage from misuse, unauthorised modifications, extreme weather beyond design loads, or normal wear of moving components. The Dooya motor and other electrical components are covered by their own manufacturer warranties, separate from this warranty.
ASG is supply only, so the warranty covers the product as supplied - not installation. View full terms and conditions.
Delivery
- We deliver Melbourne orders ourselves and use freight carriers for the rest of Australia.
- Delivery is to the door. A signature is required, so someone needs to be home to accept the order.
- Units over 3 metres in width or projection need two people on hand to receive them - to lift and move the unit safely off the vehicle.
- Receiving is separate from installation. Fitting the unit needs at least two people, and three or more for units 4 metres wide or more; those requirements are covered in the installation manual.
Quick question?
Email us about K3 Heritage Mediterranean Awning. We usually reply in 1 business day.
How It's Made
From raw materials to your door.
Assembled in Melbourne
Frame, fabric and motor combined into a single kit at our Hoppers Crossing warehouse - by the same team who built your quote.
Tested & Shipped
Quality CheckEvery kit is extended, retracted and wind-load-checked before it leaves us. Pallet-wrapped and dispatched directly to your site.
Lead time: Charcoal grey is held in stock and often ships the next business day; everything else is made to order - 2 to 3 weeks up to 3 m, 6 to 8 weeks above that.Every kit is built to your exact width, projection, fabric and finish - assembled, tested and dispatched from our Melbourne warehouse.
