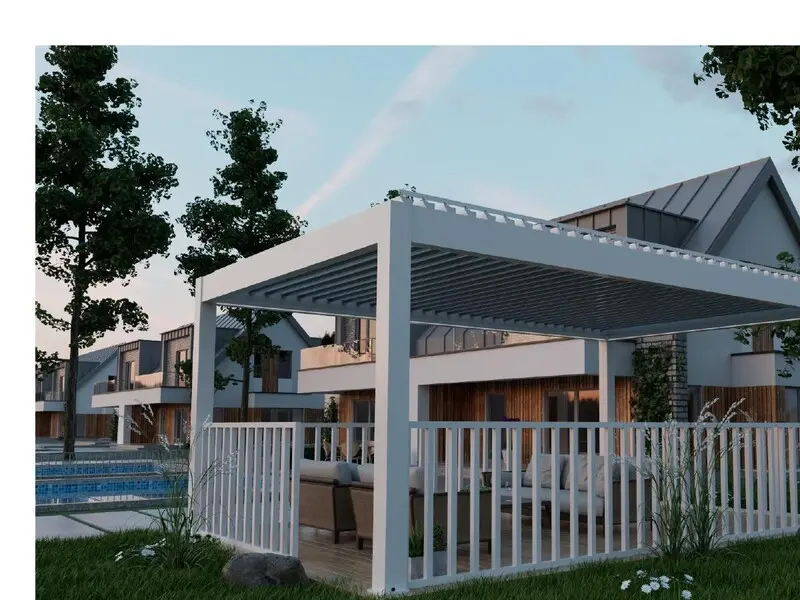

Pergola 175

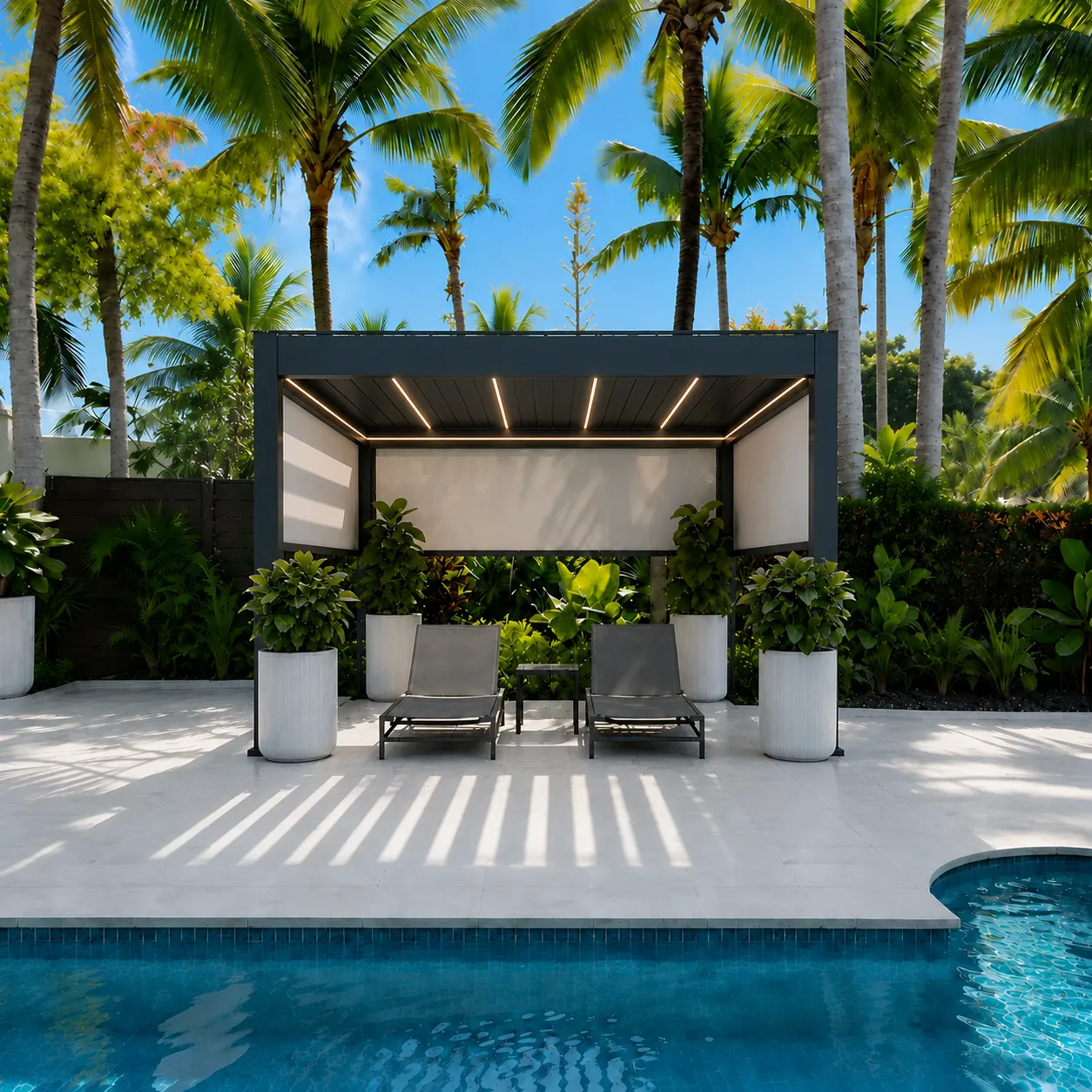

The Pergola 175 is our most popular model and the go-to choice for Australian homes and businesses. Featuring wider 175mm double-layer aluminium louvers with integrated drainage channels, it handles heavy rain, strong winds, and snow loads up to 100kg per square metre. The separate beam and sink design allows for a clean, streamlined look while maximising water management. Available in electric or manual operation with optional LED light strips. Sizes from 2m x 2m up to 5m x 3.5m - fully customisable to your space.

• Material: 6063 Aluminium Alloy
• Louver Size: 175 x 40 x 1.5mm
• Beam Size: 175 x 40 x 1.8mm
• Sink Size: 55 x 82 x 1.4mm
• Post Size: 150 x 150 x 2.0mm (or 180 x 180 x 2.5mm)
• Max Blade Length: 4 metres
• Snow Load: 100kg/m²
• Wind Resistance: Level 10 (fully closed)
• Surface: High-density powder coating
• Drive: Electric or Manual
• Drainage: Dual hidden drainage system
• Colours: Grey, White, Coffee, Black

Structural defects in the frame and fixings are covered for 3 years from the date of delivery.

Excludes damage from misuse, unauthorised modifications, extreme weather beyond design loads, or normal wear of moving components. The Dooya motor and other electrical components are covered by their own manufacturer warranties, separate from this warranty.

ASG is supply only, so the warranty covers the product as supplied - not installation. View full terms and conditions.
