Spanish Sauleda Fabric
Premium acrylic fabric, woven and dyed in Barcelona. 37 colourways, 3-year warranty, built to last 10+ years.
B05 Traditional Scalloped Awningfrom $548
Customise and priceAwning

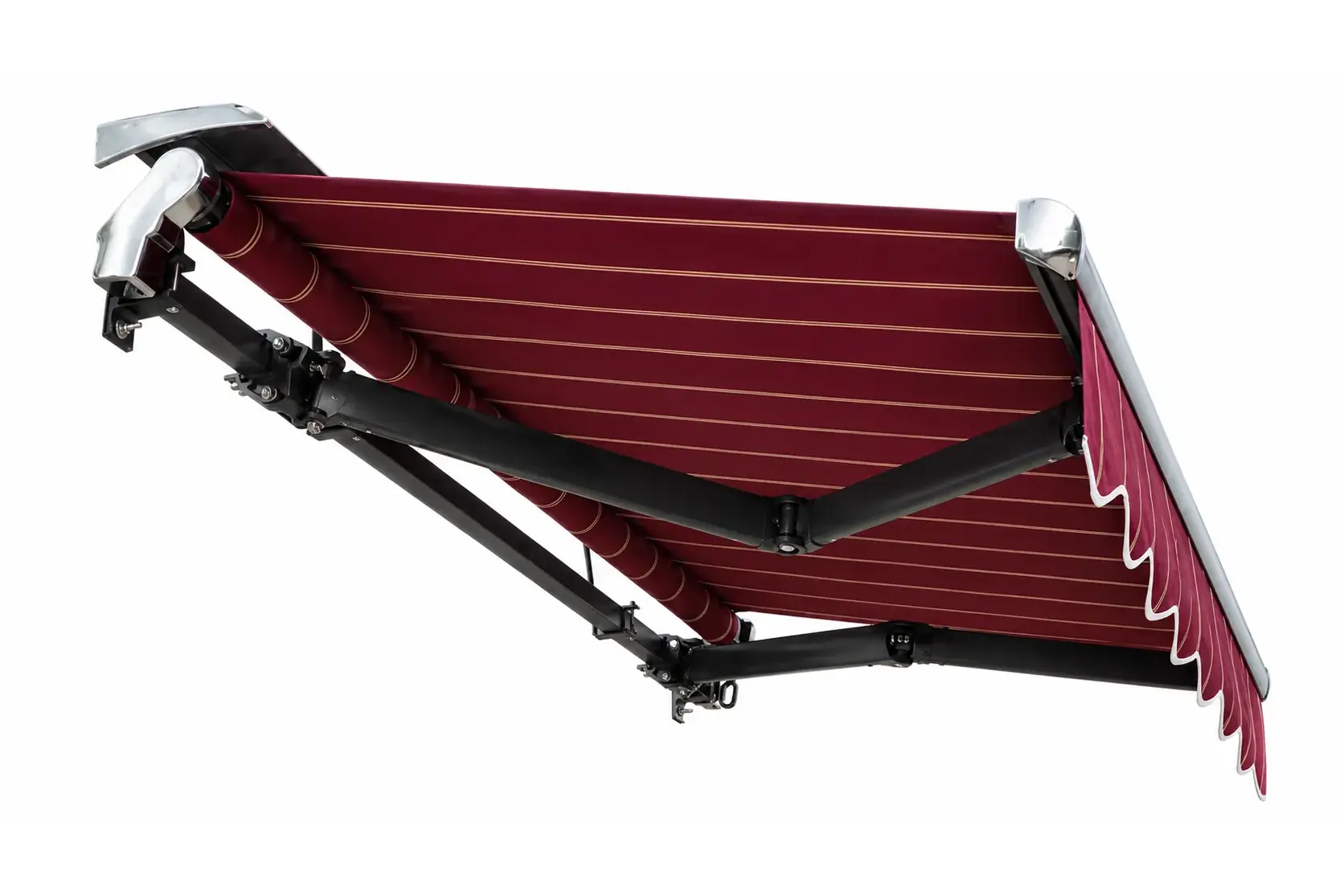

B05 Traditional Scalloped Awning
From $548
All prices include GST.
The B05 is the colour-customisable mid-tier of the range - the only awning in the lineup with an explicit choice of arm and frame finish: classic white or frosted black. The scalloped valance gives the front bar a traditional decorative silhouette that suits the broadest mix of Australian homes. Curved aluminium arms are thickened and widened for a more secure rear pipe installation, and stainless steel chain links at the joints deliver more elasticity and longer life than basic wire-link mechanisms. 8-component arm set keeps the system robust without adding cassette weight. Maximum coverage from a single set is 6 m wide × 3 m projection. Manual operation. Free delivery to local Melbournians, and a 3-year warranty on the whole awning, fabric included.
View our project gallery5 past projects| Width range | 2.0 m to 6.0 m |
|---|---|
| Projection range | 1.5 m to 3 m |
| Maximum single set (W × P) | 6.0 m × 3 m |
| Minimum single set (W × P) | 2.0 m × 1.5 m |
| Aluminium arm width | 65.14 mm |
| Aluminium arm thickness | 32.13 mm |
| Profile thickness | 1.44 mm (slim) |
| Cassette enclosure | No - scalloped valance |
| Arm mechanism | Stainless steel chain link |
| Frame finish options | White or frosted black |
| LED | Not available |
| Component count | 8-part arm set |
| Operation | Manual |
| Mounting | Wall (standard) or ceiling |
- From $1,000 - free local Melbourne delivery
- Maximum single set: 6 m × 3 m (width × projection)
- Operation: manual
- Frame finish: white OR frosted black (your choice)
- Stainless steel chain link joints (premium durability)
- Thickened and widened curved arms with secure rear pipe
- Aluminium arms: 65.14 mm × 32.13 mm
- 1.44 mm slim profile
- Decorative scalloped valance
- 8-component arm set
- Mounting: wall-mounted (most common) or roof-mounted
- Spanish Sauleda fabric: 19 solids + 18 stripes (10+ years expected life)
- 3-year warranty on the whole awning, fabric included
Charcoal grey is held in stock and can often ship next business day. Everything else is made to order: 2 to 3 weeks up to 3 m, 6 to 8 weeks above that.
The whole awning, fabric included, is covered for 3 years from the date of delivery. It is built to last 10 years or more - that is its expected life, not a warranty term.
Excludes damage from misuse, unauthorised modifications, extreme weather beyond design loads, or normal wear of moving components. The Dooya motor and other electrical components are covered by their own manufacturer warranties, separate from this warranty.
ASG is supply only, so the warranty covers the product as supplied - not installation. View full terms and conditions.
Delivery
- We deliver Melbourne orders ourselves and use freight carriers for the rest of Australia.
- Delivery is to the door. A signature is required, so someone needs to be home to accept the order.
- Units over 3 metres in width or projection need two people on hand to receive them - to lift and move the unit safely off the vehicle.
- Receiving is separate from installation. Fitting the unit needs at least two people, and three or more for units 4 metres wide or more; those requirements are covered in the installation manual.
Quick question?
Email us about B05 Traditional Scalloped Awning. We usually reply in 1 business day.
How It's Made
From raw materials to your door.
Assembled in Melbourne
Frame, fabric and motor combined into a single kit at our Hoppers Crossing warehouse - by the same team who built your quote.
Tested & Shipped
Quality CheckEvery kit is extended, retracted and wind-load-checked before it leaves us. Pallet-wrapped and dispatched directly to your site.
Lead time: Charcoal grey is held in stock and often ships the next business day; everything else is made to order - 2 to 3 weeks up to 3 m, 6 to 8 weeks above that.Every kit is built to your exact width, projection, fabric and finish - assembled, tested and dispatched from our Melbourne warehouse.
