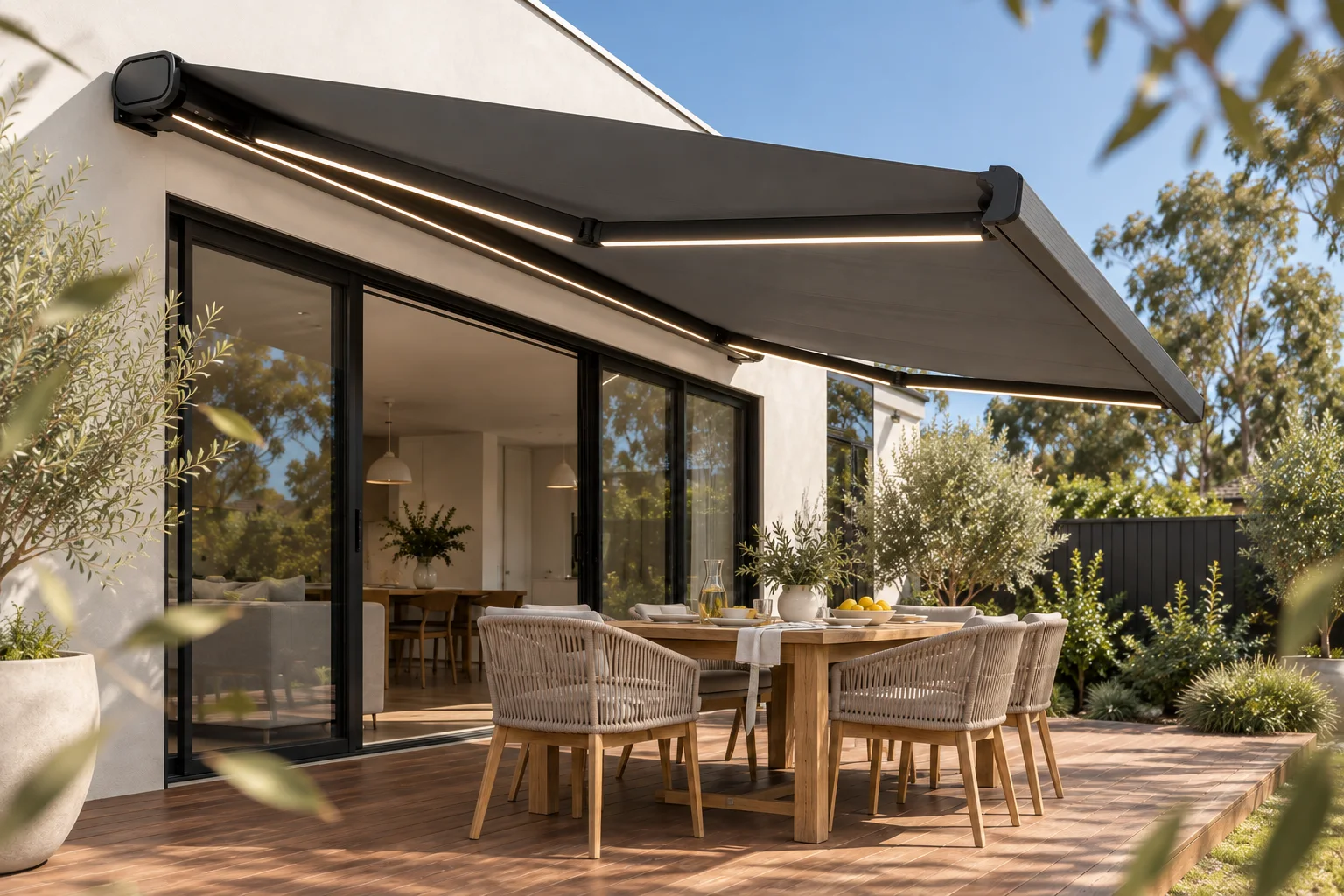

Rated for real wind
Tested to Class 3, the top of the European wind standard. The wind sensor is included and pulls it in when you're not home.
AW01 Full Cassette Awningfrom $1,525
Customise and priceAwning
AW01 Full Cassette Awning

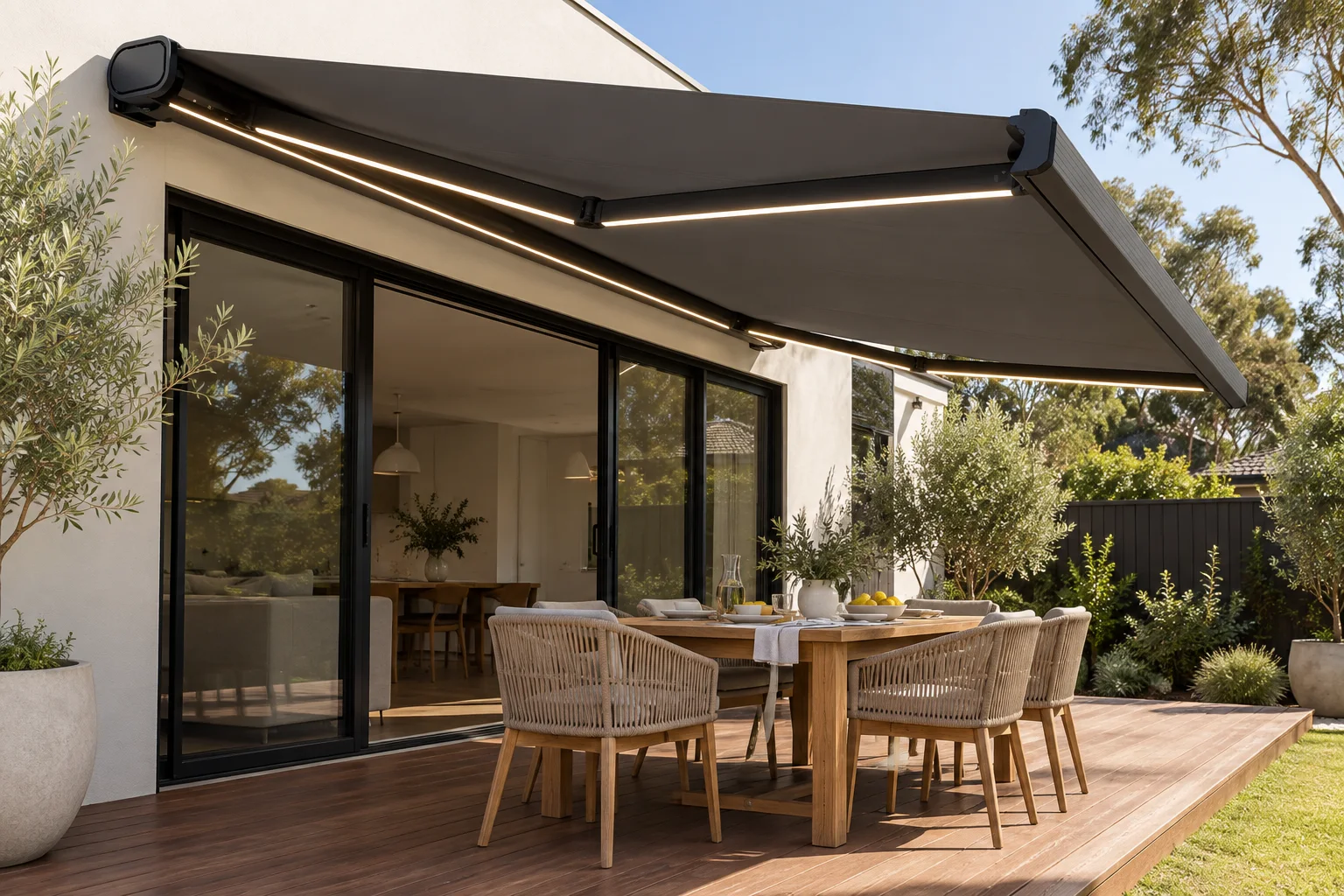

A motorised cassette awning with built-in LED lighting, made to your size and dispatched from Melbourne.
From $1,525incl. GST
Wind sensor, remote, LED lighting and wall fixings included.
- Class 3 wind rating, the highest
- UPF 60+ Sauleda fabric
- 37 colours, one price
- Up to 7 × 3.5 m
- DIY install, plugs into a power point
- 3-year warranty, built to last 10+ years
Made to order: 2 to 3 weeks up to 3 m, 6 to 8 weeks above that.
Free delivery to most of Melbourne, $150 to outer suburbs, freight quoted elsewhere and interstate.

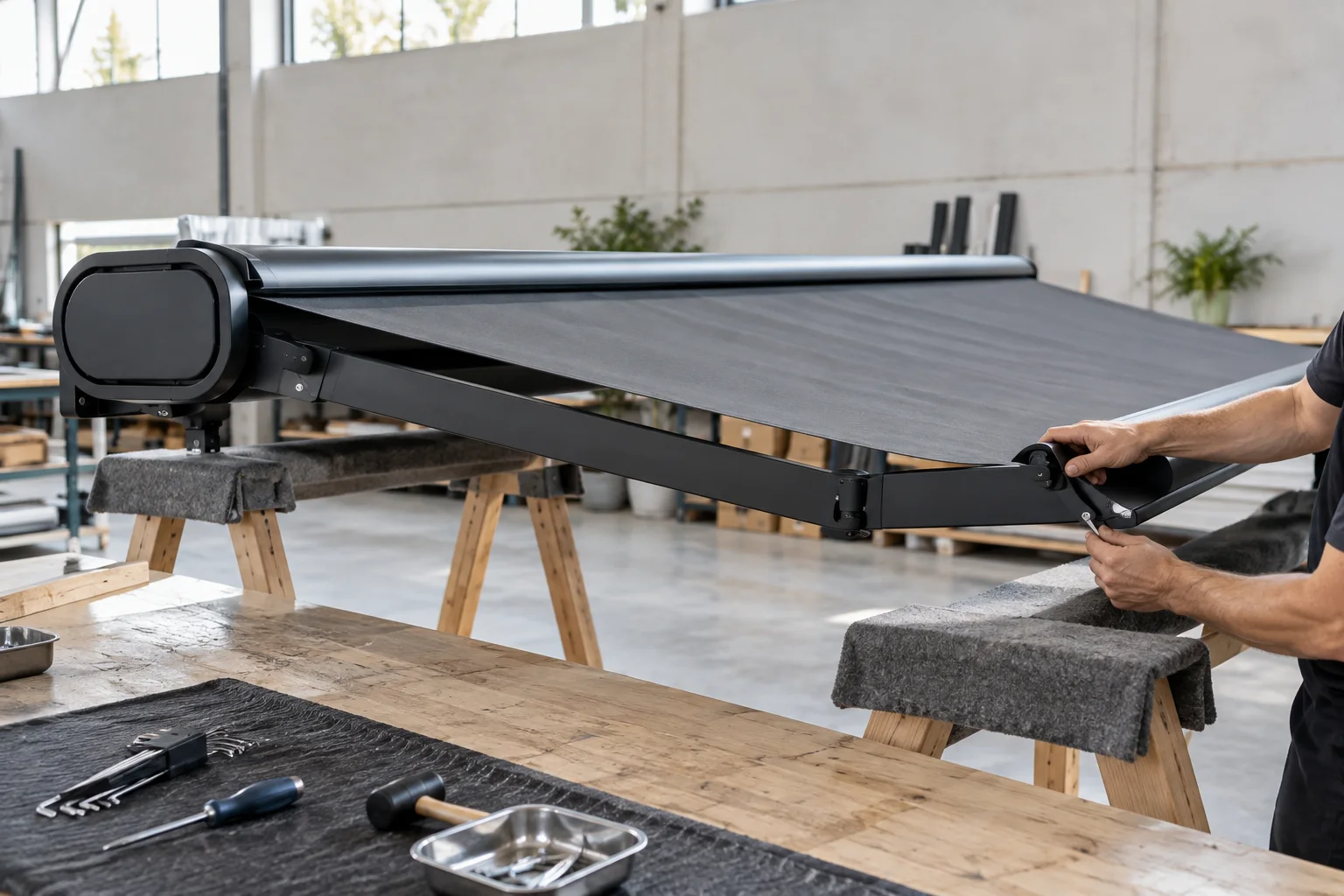

- Assembled in Hoppers Crossing
- Reply within 1 business day
Why the AW01

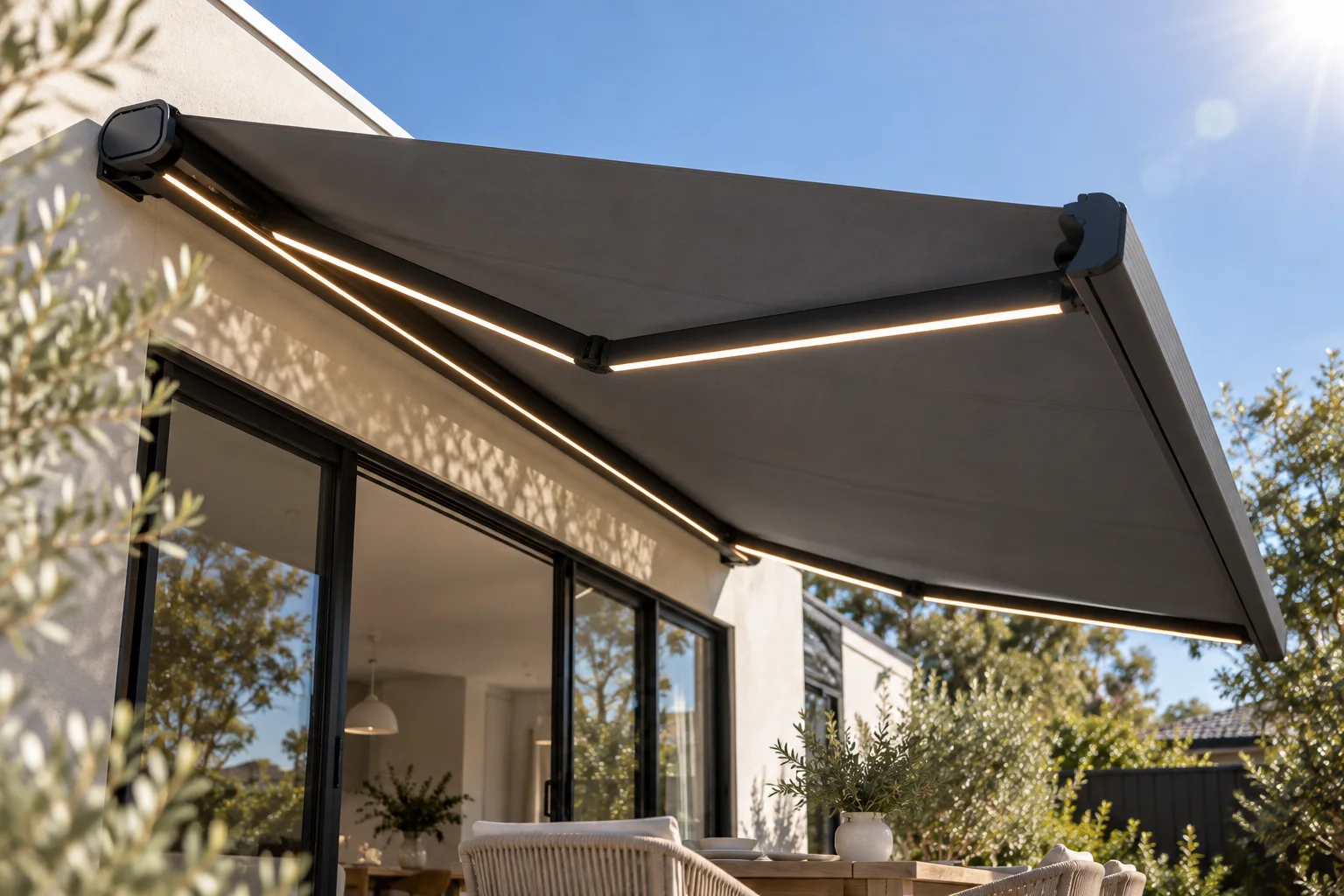

Shade that stays shade

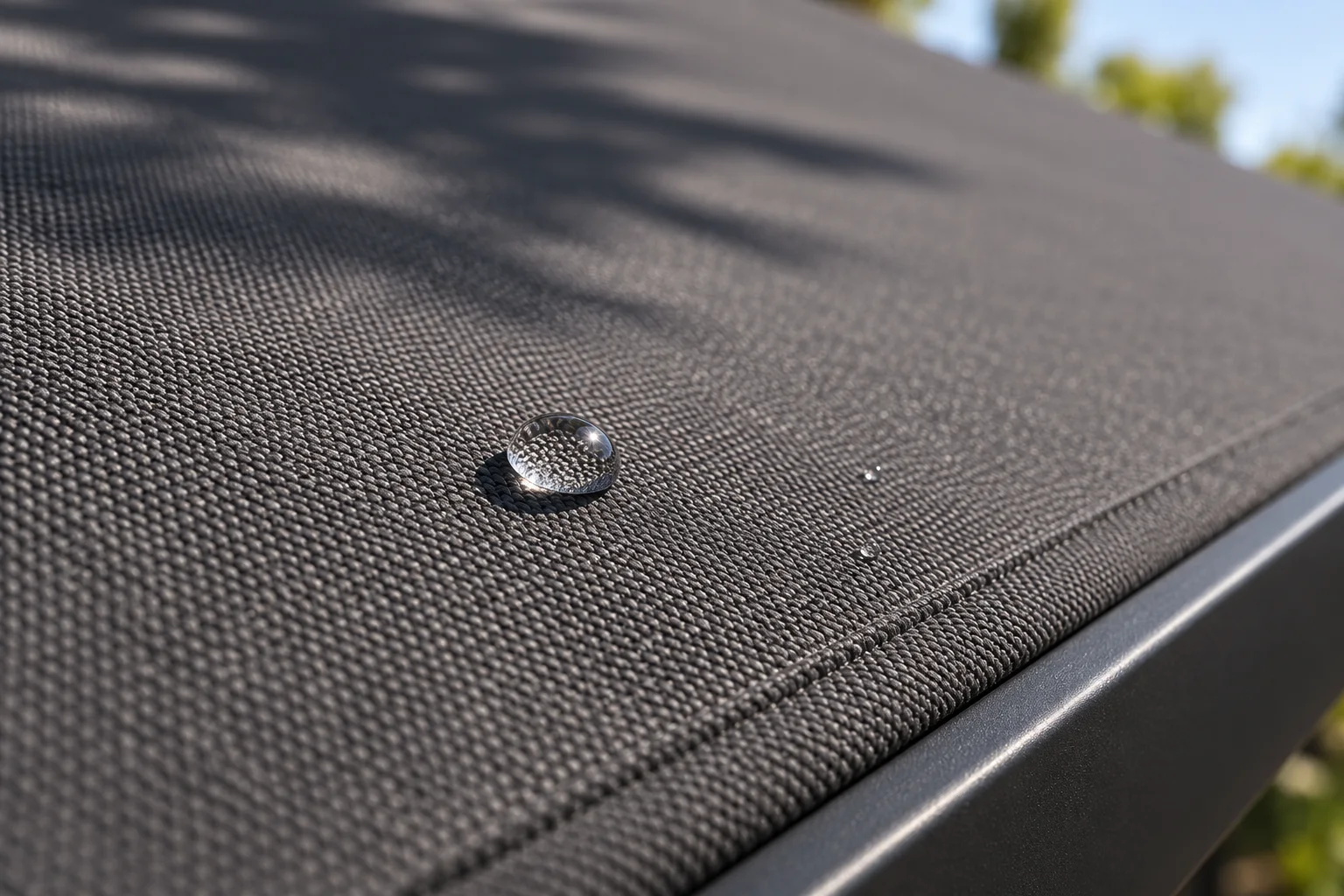

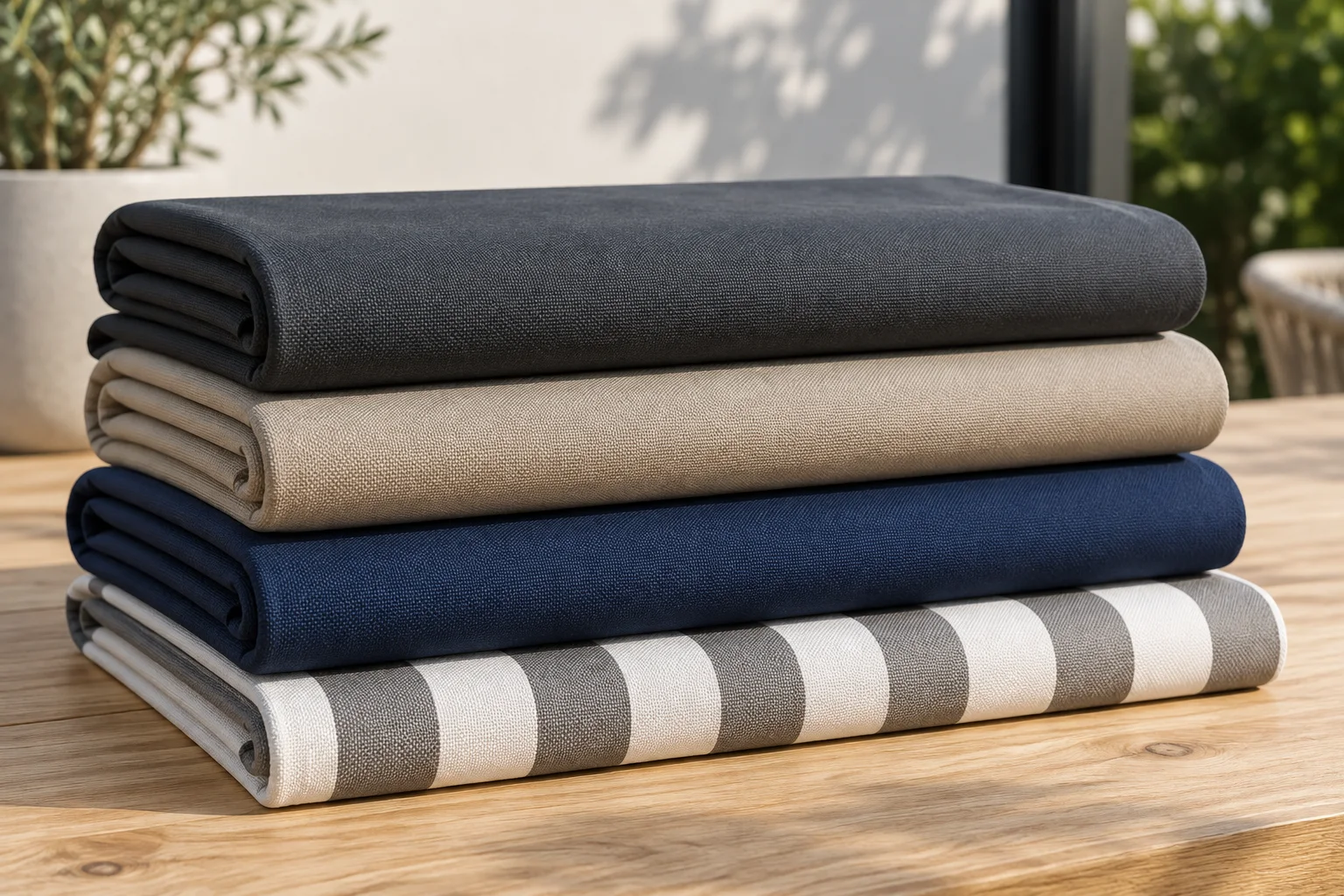

Spanish Sauleda acrylic, UPF 60+, blocks 99% of UVA. The colour is dyed through the fibre, so it doesn't wash out.

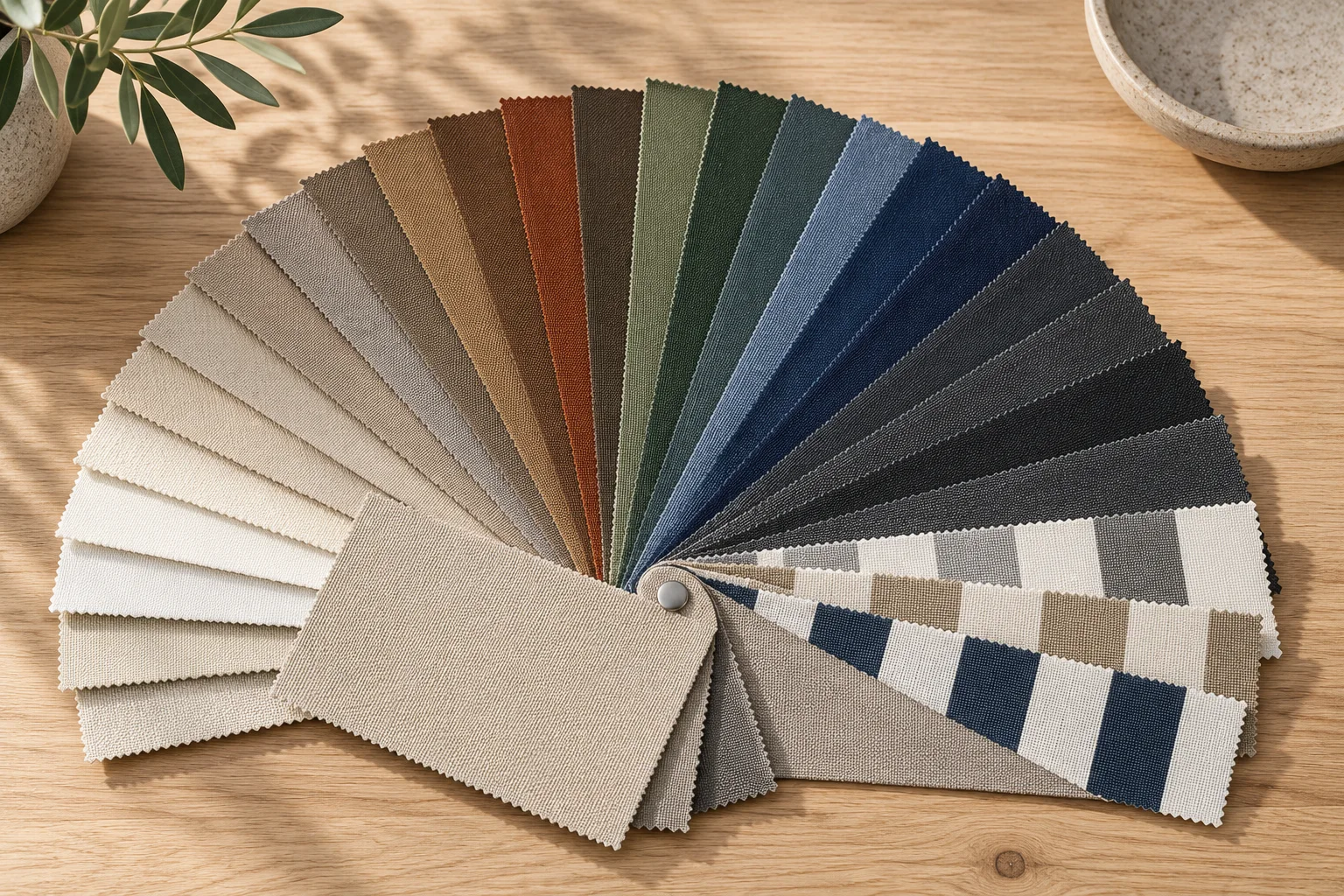

37 colours, one price
19 solids and 18 stripes, all the same price.
See every colour

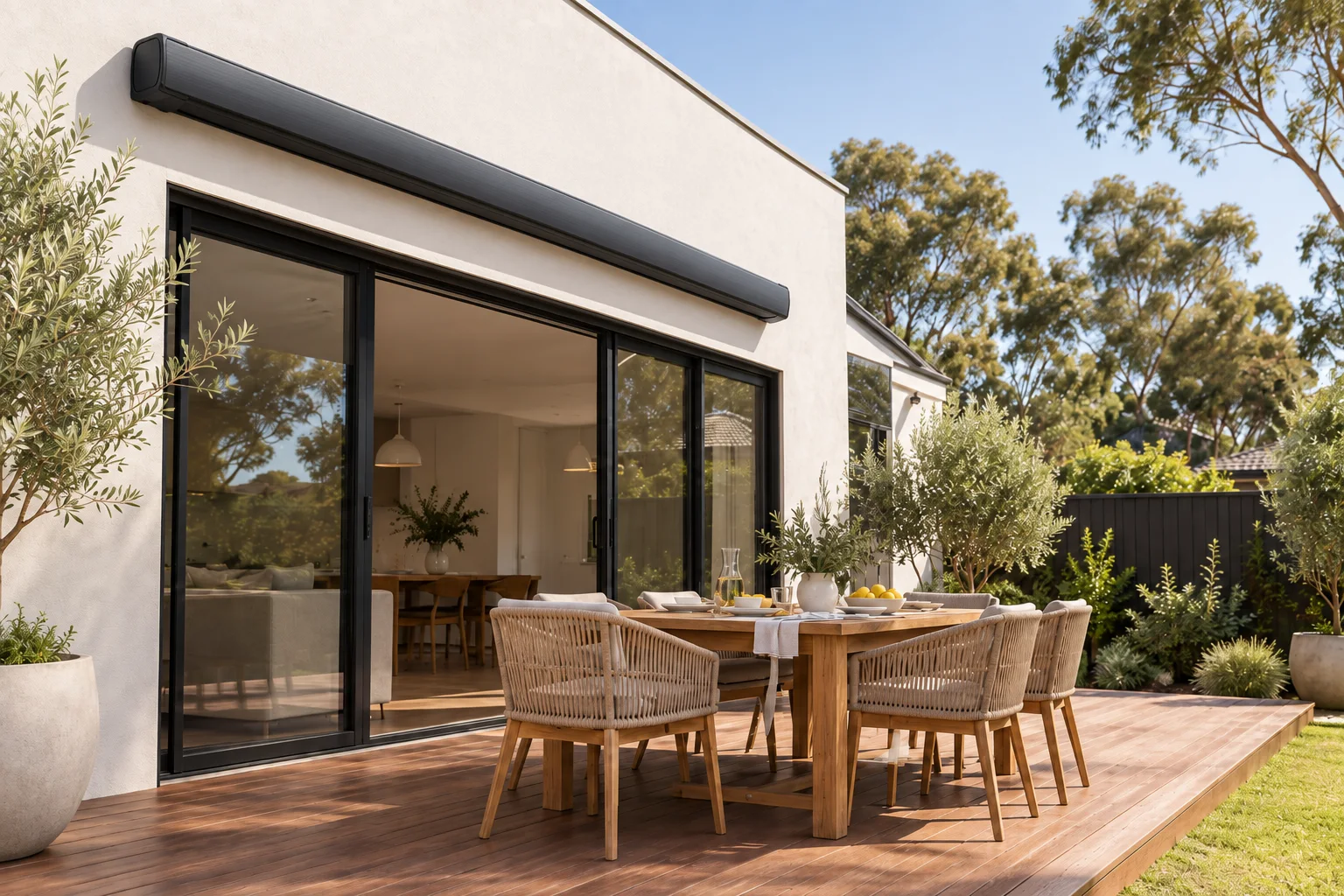

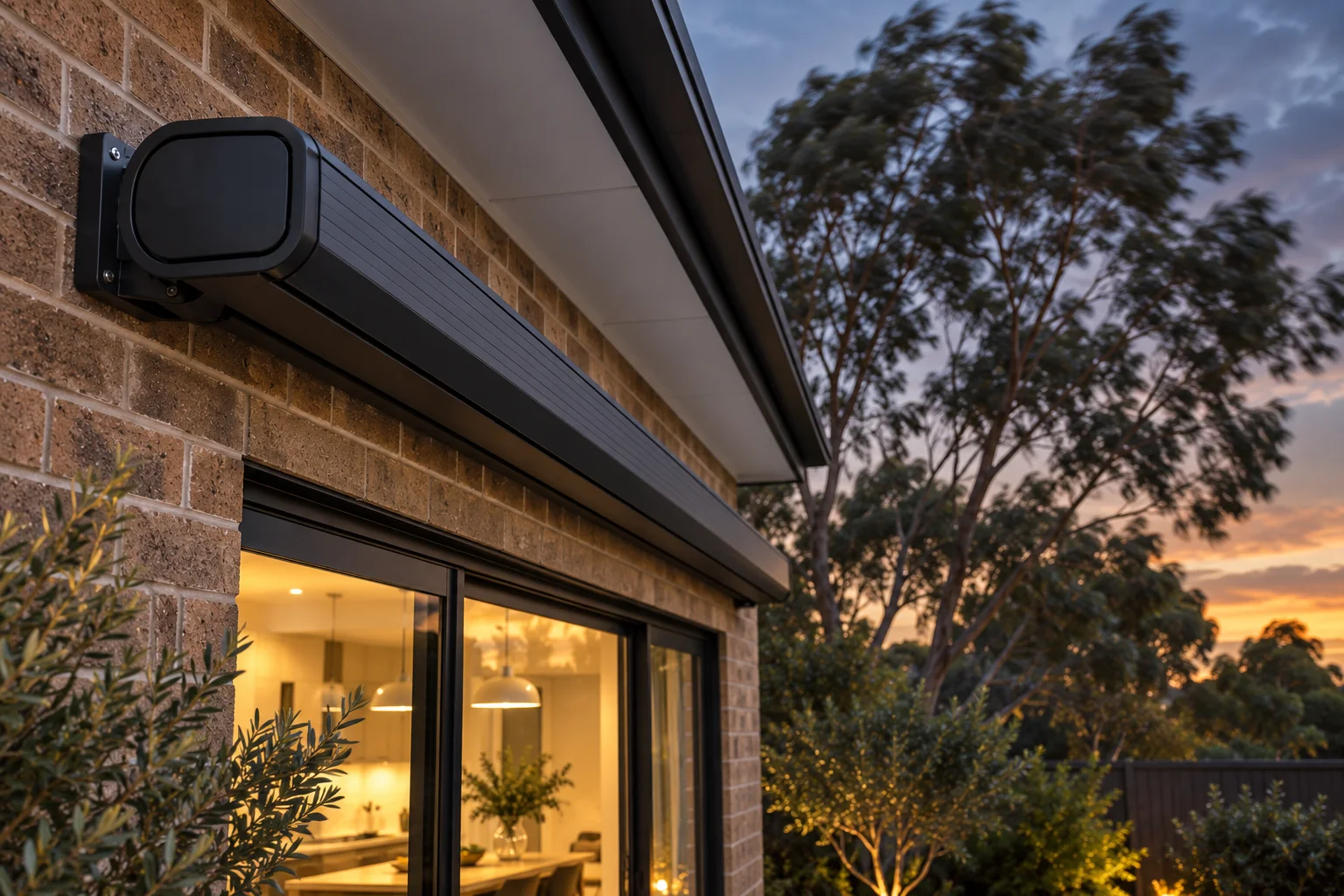

Sealed when it's closed

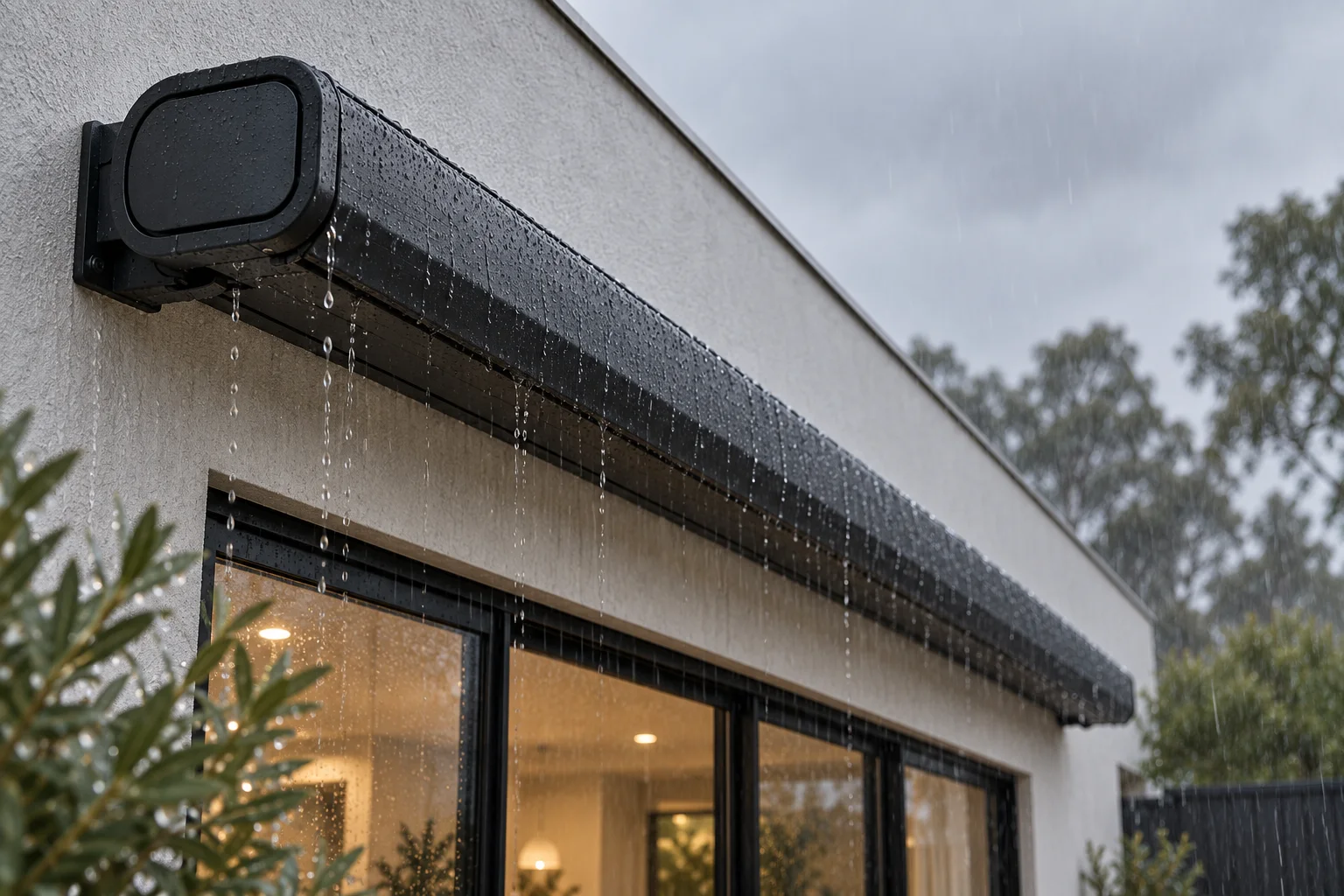

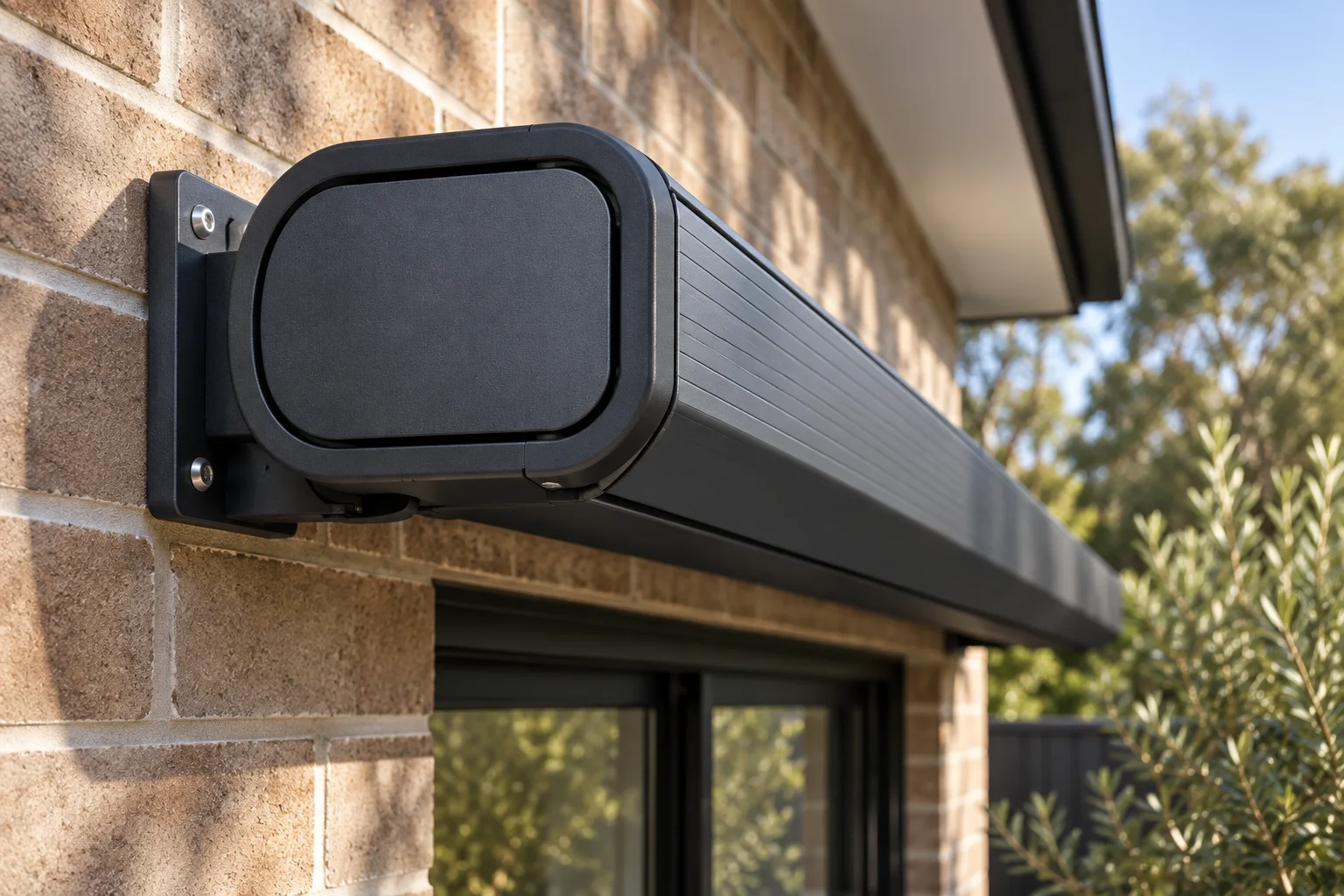

Fabric, arms and roller fold into the cassette under a built-in rain hood. Nothing left in the weather, nothing to rattle.

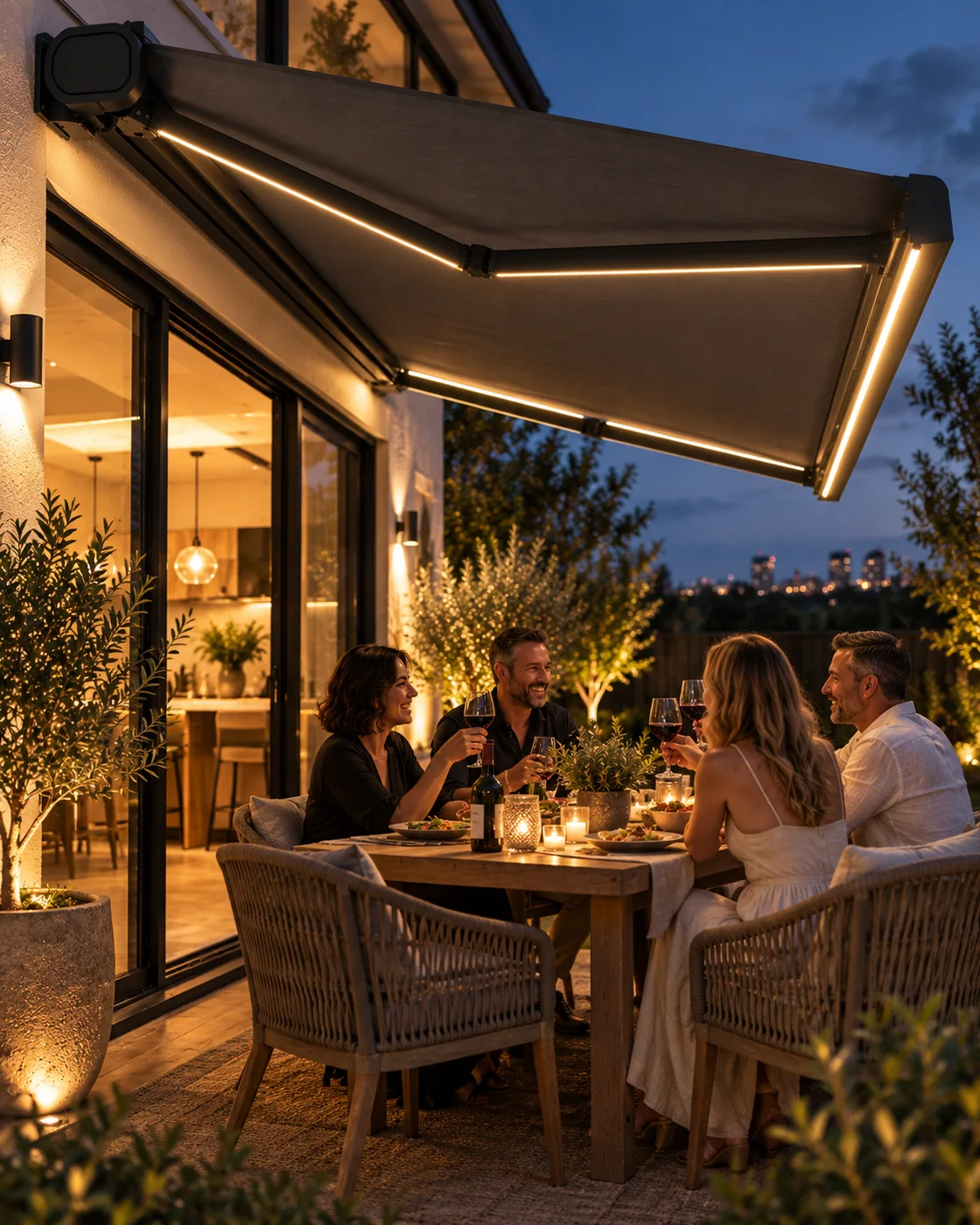

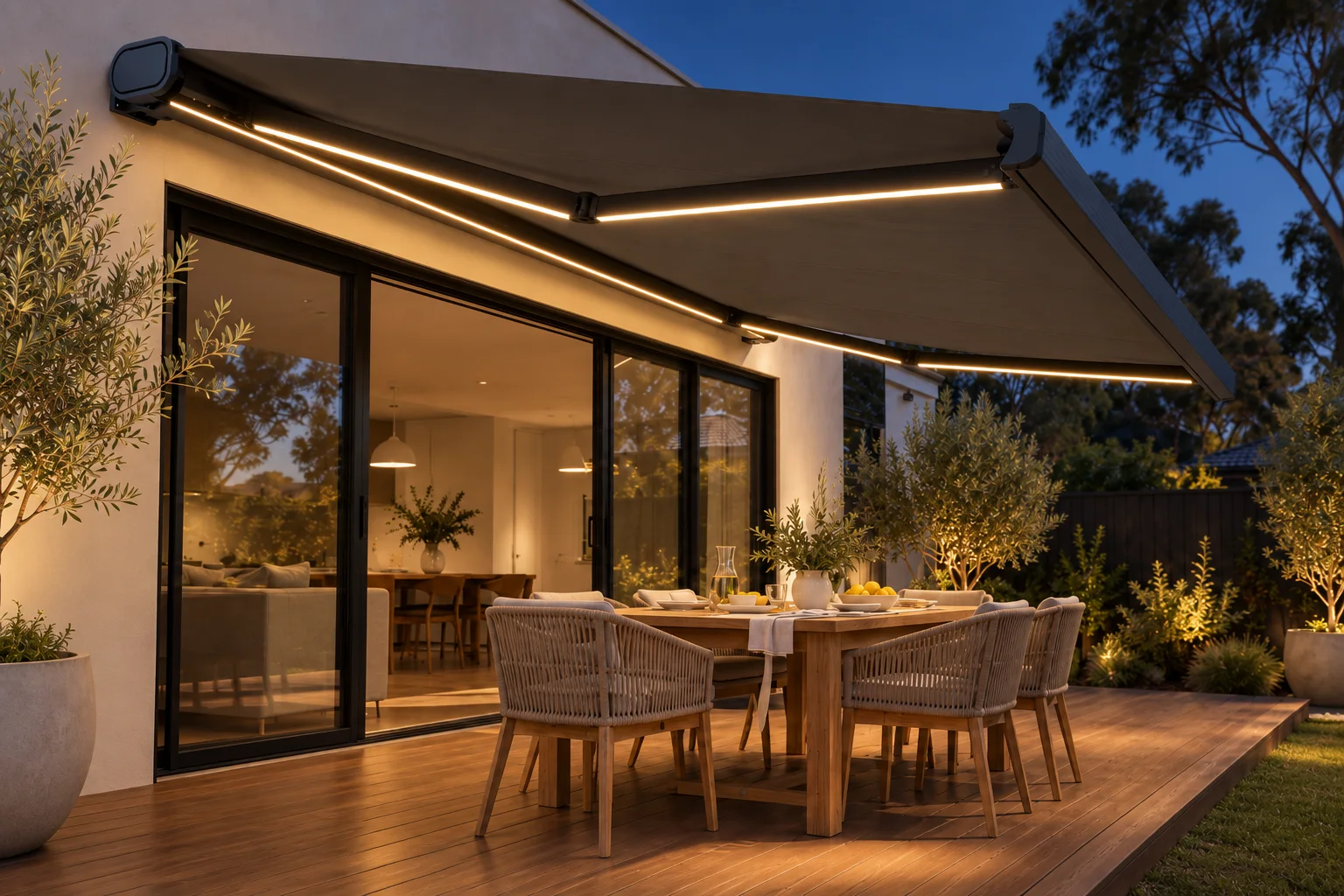

Lit after sunset

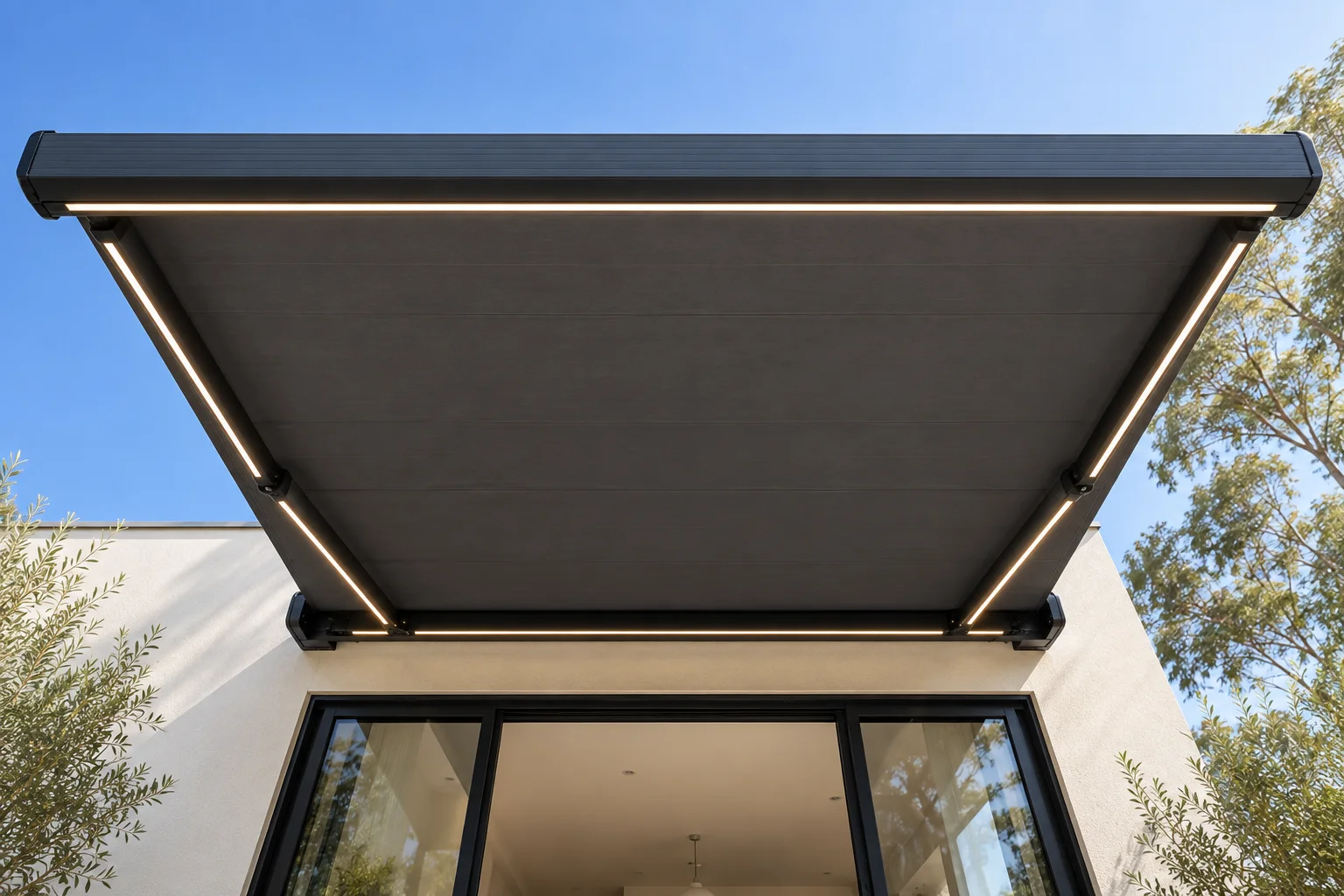

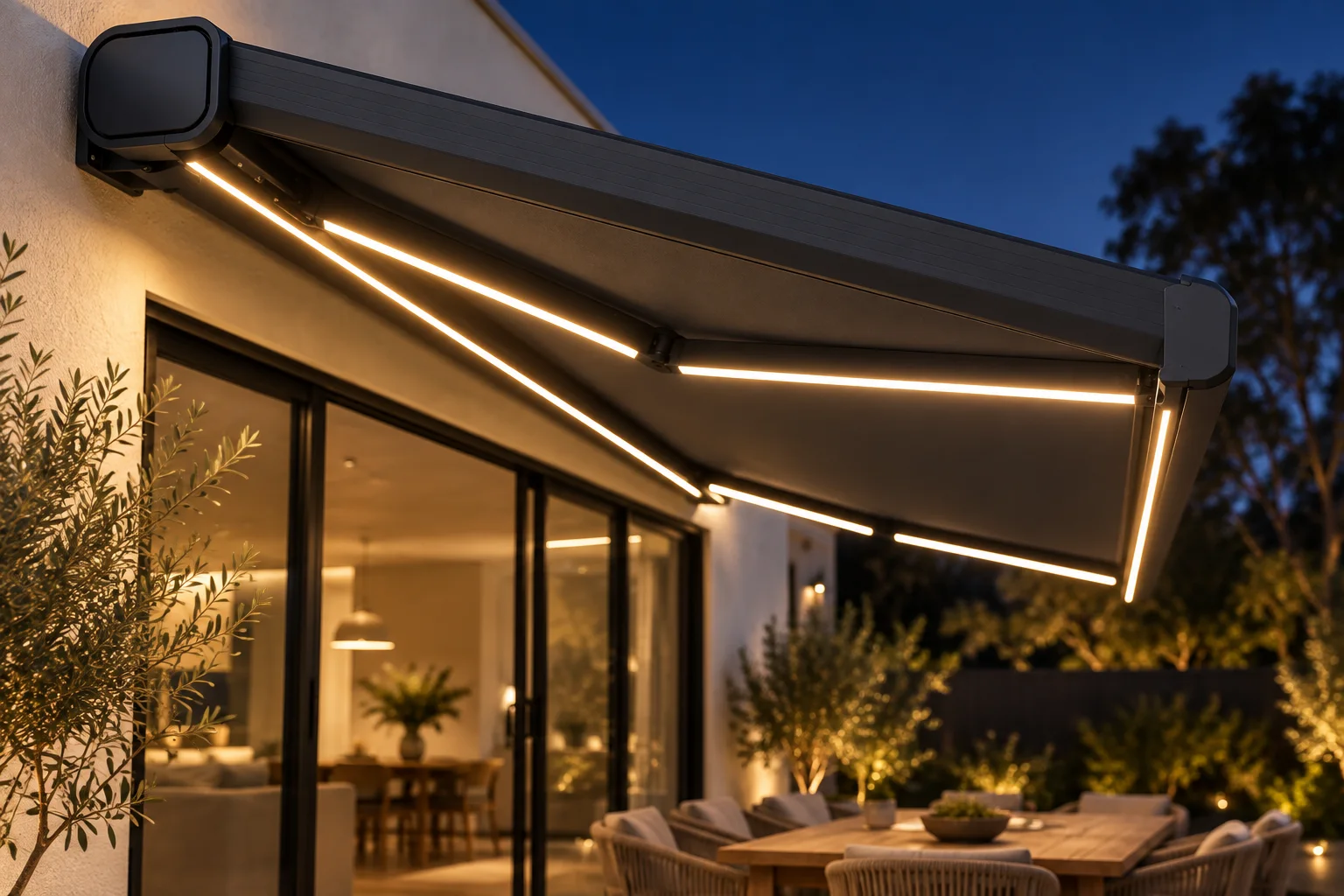

Warm-white LED strips along the cassette and each arm, switched separately from the awning. Powered from the unit, no extra wiring.
Button, remote or crank

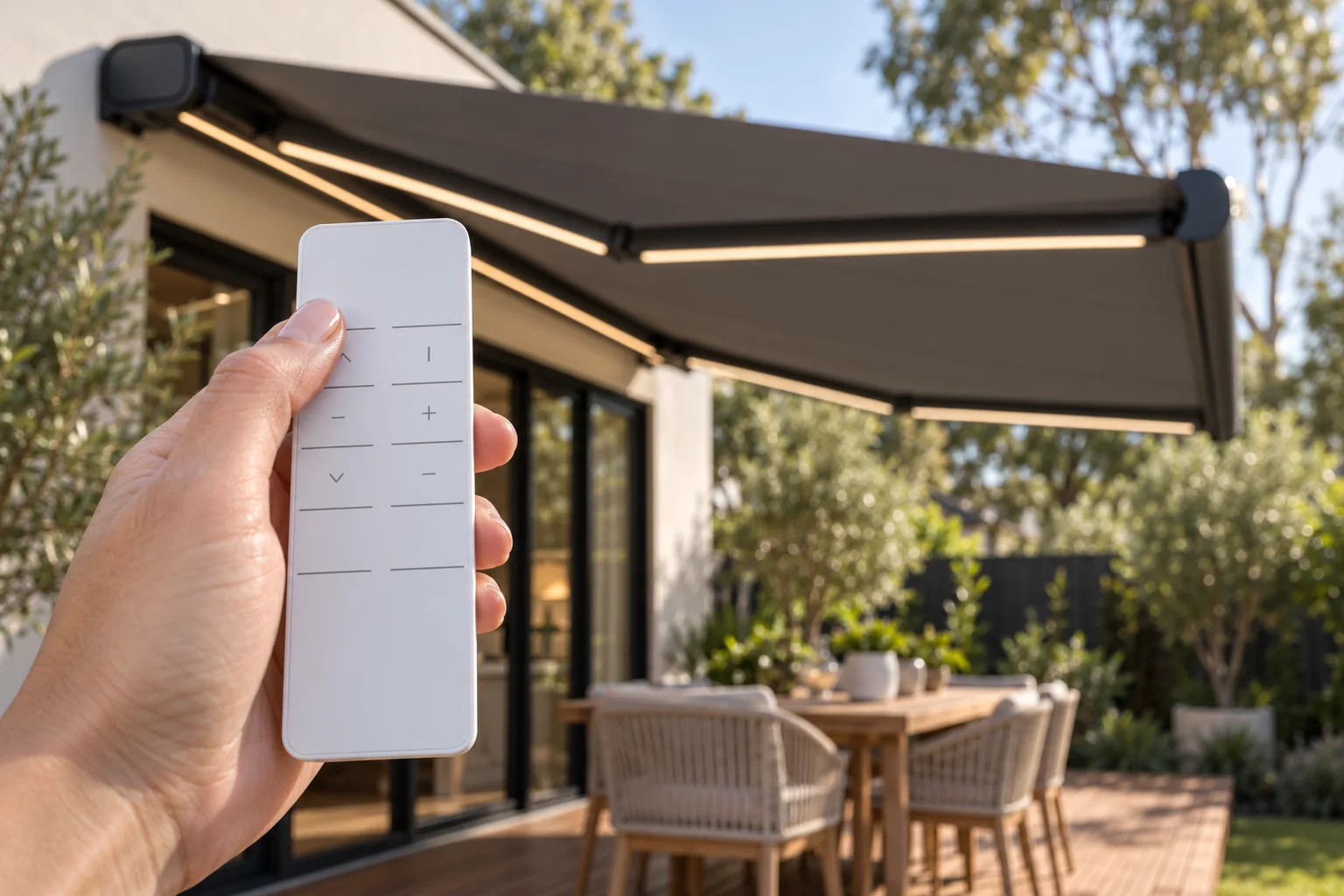

Quiet motor with remote supplied. Adjustable pitch. Hand crank in the box for power cuts.
Independently tested: EN 13561 Class 3 by Intertek · UV STANDARD 801 · STANDARD 100 by OEKO-TEX
What each one tests
- EN 13561 Class 3 (Tested by Intertek) - Retractable awnings are rated 0 to 3 for wind. Class 3 is the top of that scale, and most awnings on the market carry Class 1 or Class 2. Tested at 3000 x 1530 mm.
- UV STANDARD 801 (Sauleda fabric) - The strictest UV test for shade textiles. Unlike other UV standards it measures the fabric wet, stretched, abraded and aged, not only new and dry. Our colourways rate UPF 60 to 80.
- STANDARD 100 by OEKO-TEX (Sauleda fabric) - Every component of the fabric is tested for substances harmful to health or skin, down to the thread and the coating, at every stage of manufacture.
- ISO 9001 (Sauleda, since 1999) - The mill's process control is externally audited against the global quality-management standard rather than self-declared. Sauleda has held it for more than 25 years.
- Made in Europe (Barcelona, Spain) - The acrylic is woven, dyed and finished in Sauleda's own plant in Barcelona under EU safety, health and environmental rules - not sourced on price.
What to check on any awning quote
Seven questions worth asking any supplier, and the AW01's answer to each.
| What to check | AW01 | Often seen elsewhere |
|---|---|---|
| Wind rating | Class 3 (highest), independently tested | Class 1 or 2, or not stated |
| Wind sensor | Included | Optional extra, around $150 |
| Fabric | Sauleda acrylic, dyed through the fibre | PU-coated polyester |
| Colour choice | 37, one price | 1 to 3 |
| UV rating | UPF 60+, certified | UPF 50+, self-declared |
| Wall fixings | Included | Buy your own |
| Install | DIY about 1 hour, plugs in | Varies, sometimes hard-wired |
Watch it extend
A 6 × 3.5 m AW01 opening with the LEDs on, at 2× speed.
Fit it yourself
- Arrives assembled and tested, with a plug.

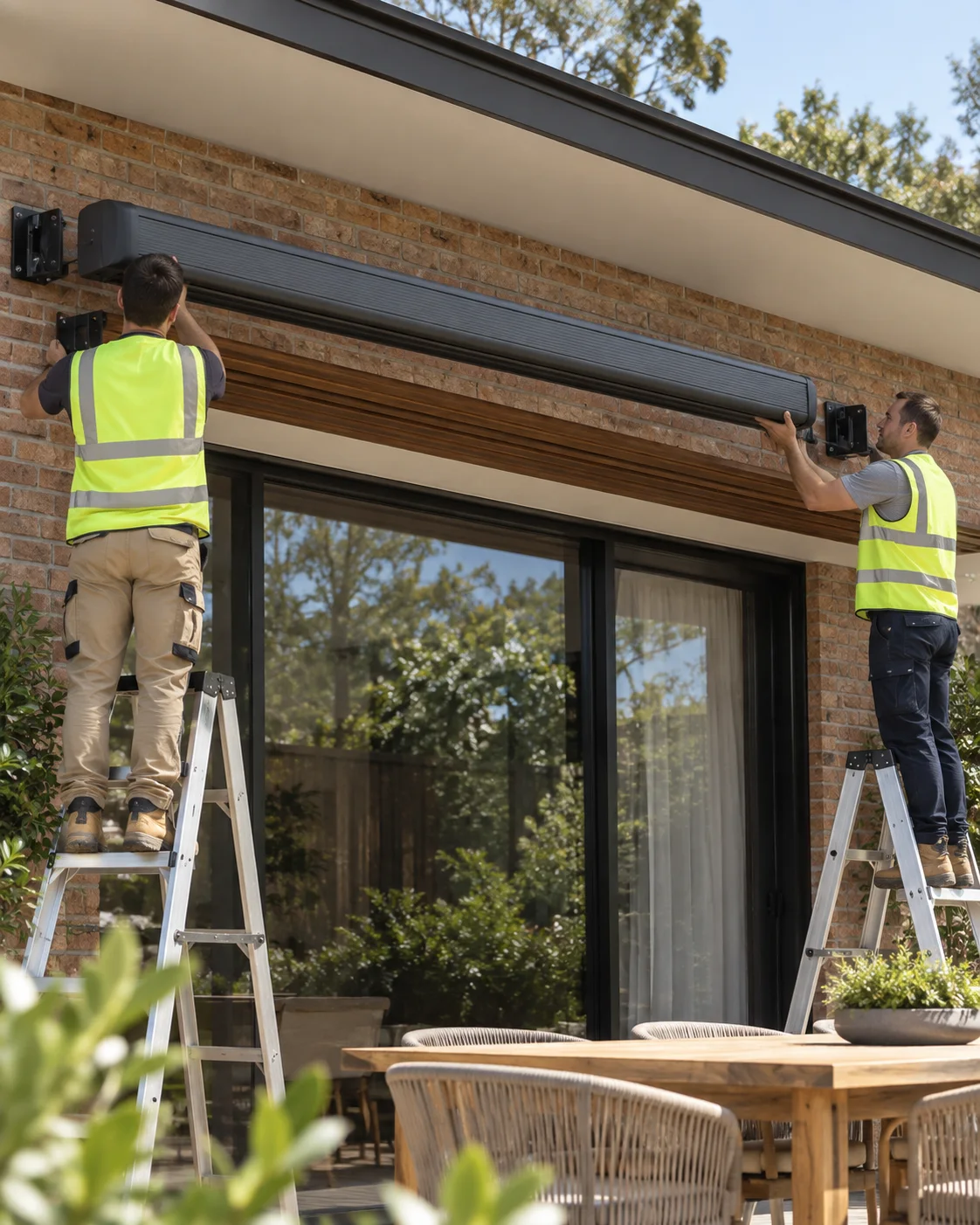

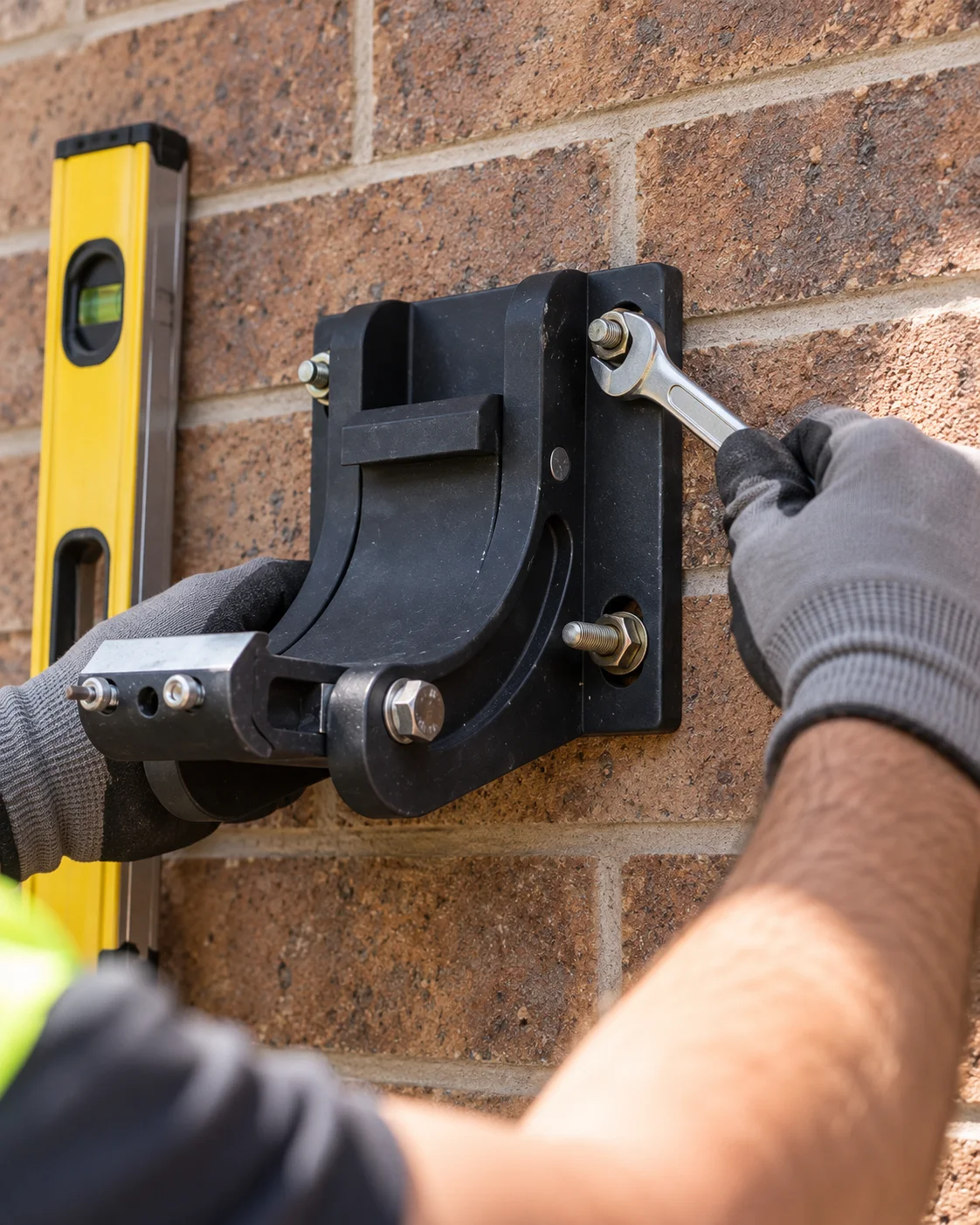

- Two brackets (three from 4 m wide), one lift, one power point. About an hour with a helper.
- Fixings included for concrete, solid brick and timber. Hollow brick needs a chemical anchor from any hardware store.

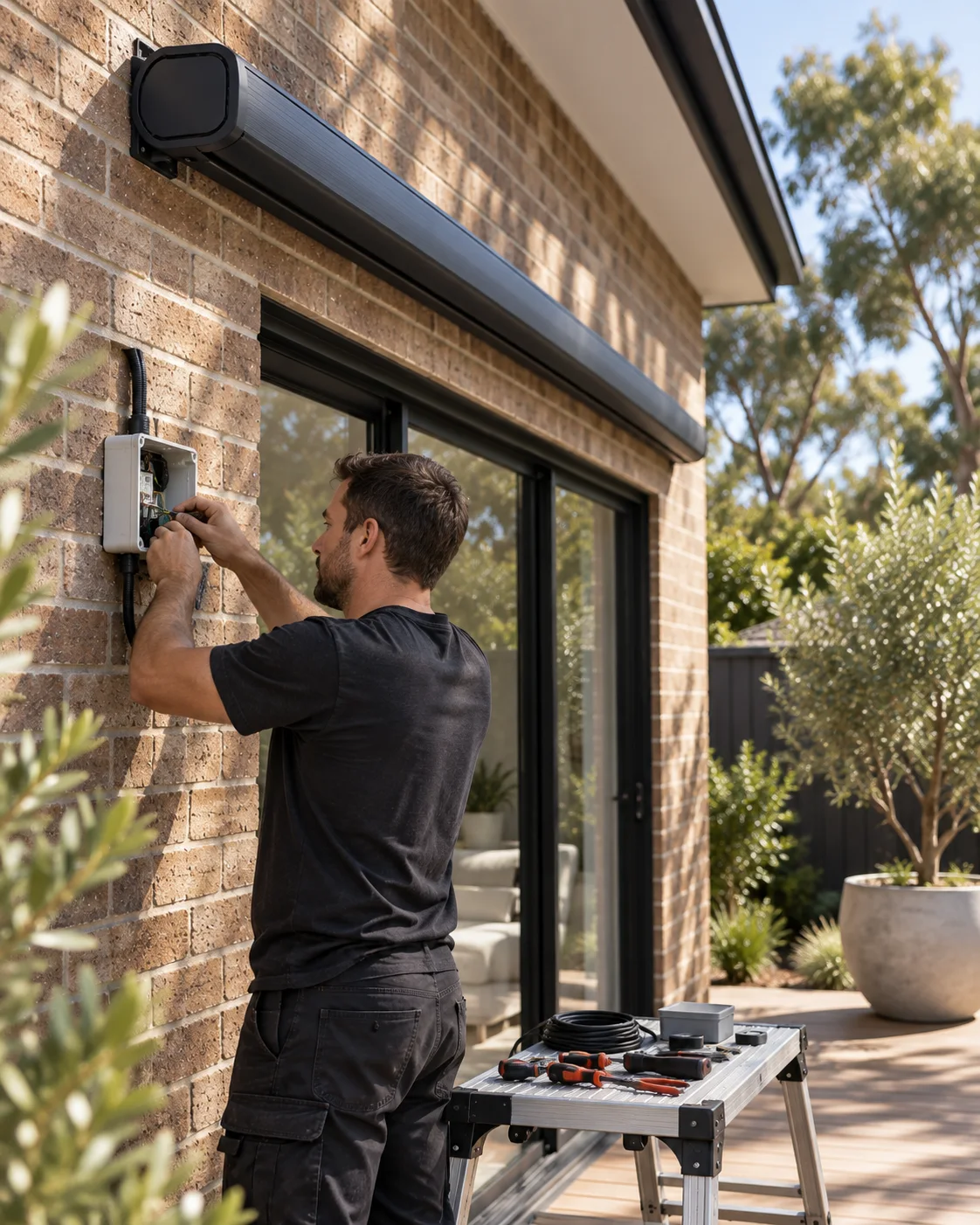

- No power point nearby? That's the only time you need an electrician.
Specifications
| Size | |
|---|---|
| Width | 2 to 7 m; custom widths in 0.5 m steps |
| Projection | 1 to 3.5 m (arms of 1, 1.5, 2, 2.5, 3 and 3.5 m) |
| Standard sizes (W × P) | 2 × 1, 3 × 2, 4 × 3, 5 × 3.5, 6 × 3.5 and 7 × 3.5 m |
| Cassette, closed (H × D) | 146 × 236.5 mm |
| Frame | |
| Material | 6063 aluminium, high-density powder coat |
| Colours | Bright white or frosted black |

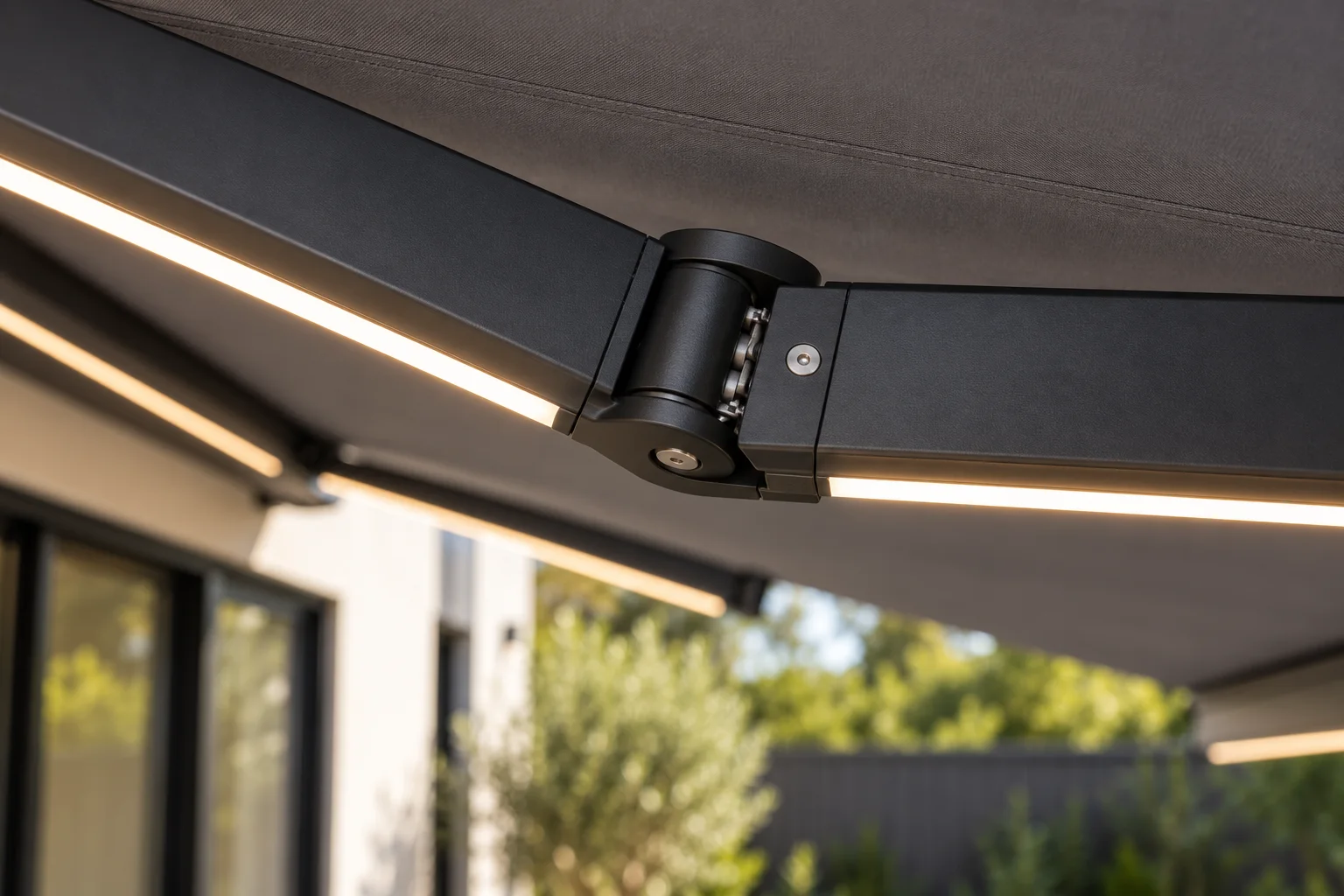

| Arm joints | Thickened stainless steel chain link, heavier springs |

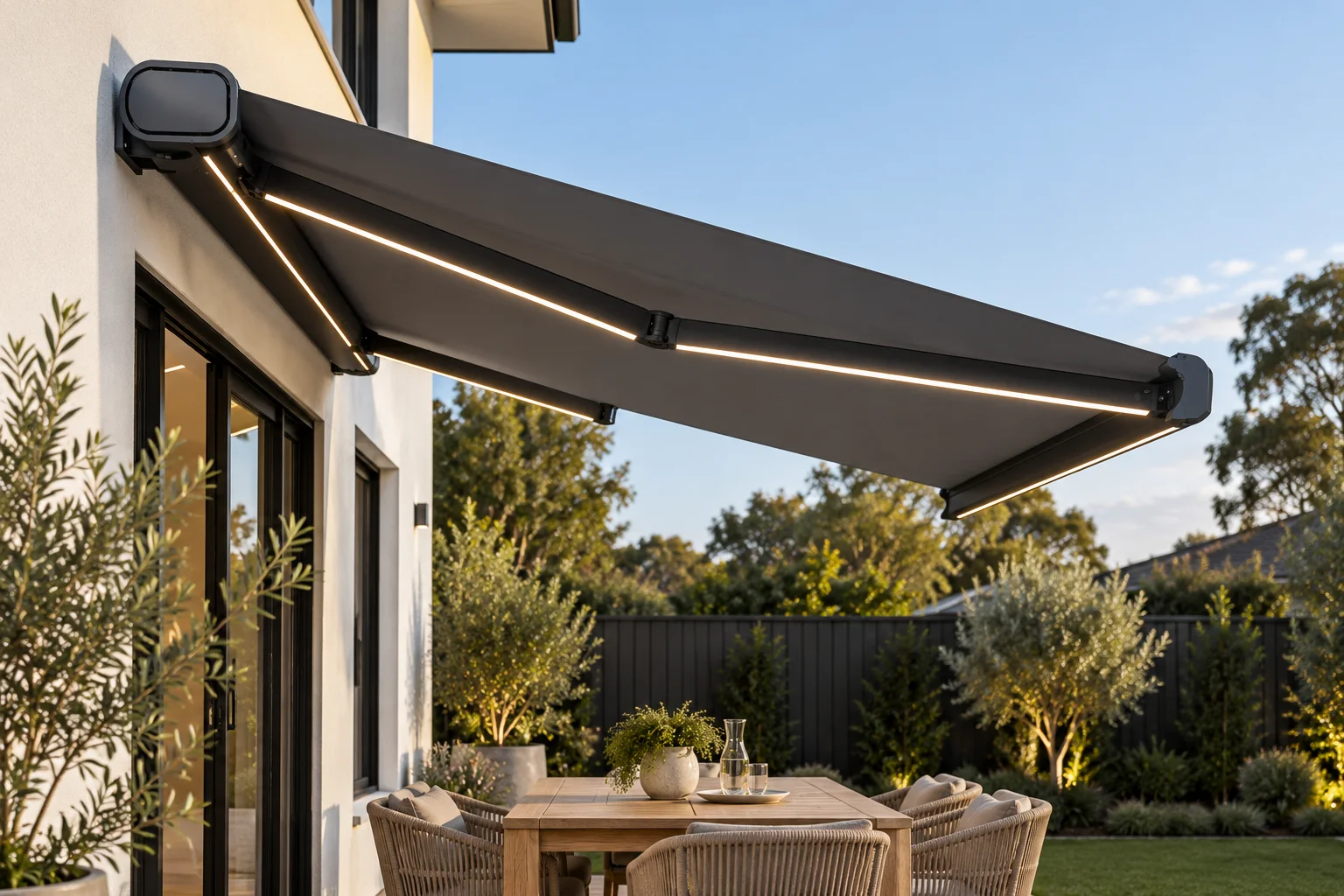

| Pitch | Adjustable at each bracket with a 6 mm hex key |
| Fabric | |
| Material | Sauleda 100% acrylic, solution-dyed, made in Barcelona |
| UV | UPF 60 to 80, blocks 99% of UVA, certified to UV STANDARD 801 |
| Colours | 37 (19 solid, 18 stripe), all one price |
| Wind | |
| Rating | EN 13561 Class 3 (Beaufort 6, about 39 to 49 km/h), tested by Intertek at 3000 × 1530 mm |
| Sensor | Included; retracts the awning automatically |
| Motor | |
| Type | 240 V tubular motor, IP67, wireless remote supplied, hand crank backup |
| Power | Standard 240 V plug on a 1 m cable, into a nearby power point |
| Lighting | |
| LED | 24 V warm white (3000K) strips along the cassette and each arm, 15 W/m, dimmable, switched separately |
| Install | |
| People | Two, or three from 4 m wide |
| Brackets | Two, set 6.5 cm in from each end; a third in the middle from 4 m wide |
| Fixings | 4 anchors per bracket supplied, for concrete, solid brick and timber |
| Mounting | Wall or soffit |
| Mounting height | About 2.4 m recommended; the front bar must clear doors and paths at full projection |
| Clearances | 8 cm at each end of the cassette; 10 cm from any corner |
| Warranty | |
| Warranty | 3 years on the whole awning, fabric included, from the date of delivery |
| Motor and electrical | Manufacturer warranties |
| Expected life | 10+ years for the awning and its fabric (not a warranty term) |
On customers' homes
Rowville
Rowville
Rowville
Questions, answered
Yes, and most customers do. The AW01 arrives assembled, tested and fitted with a plug, and the install is two brackets (three from 4 m wide), a lift and a power point - about an hour with a helper, following the manual and the video. Two people for the lift, three if it is 4 m wide or more. If you would rather not, any handyman can fit it.
A solid one, and the right anchor for it. Concrete, solid brick and structural timber take the supplied anchors directly. Hollow brick needs a chemical anchor from any hardware store. Rendered or clad walls are fixed through the surface into the structure behind. If you are unsure what your wall is, drill a small pilot hole first and see what you are into.
Bracket positions are set by the arm bases for the width you order, 6.5 cm in from each end of the cassette, with a third in the middle on awnings 4 m wide or more. Allow at least 8 cm clear at each end and 10 cm from any internal or external corner. The wall has to take the load at those exact points, not just somewhere along it.
At least two. Three for awnings 4 m wide or more, or for any lift above shoulder height.
Yes. 4 anchors per bracket are in the box, for concrete, solid brick and timber - eight for a two-bracket awning, twelve from 4 m wide. For hollow brick, pick up a chemical anchor from any hardware store.
About 2.4 m suits most homes, but your doors, windows and headroom decide it. The awning drops as it extends, so the front bar at full projection is the lowest point. Set the height so paths, doors and windows stay clear there. Our measuring guide walks through it.
Yes. Wall mounting is standard, and a soffit bracket lets it hang from a ceiling or eave instead. On a soffit the fixings go into structural timber or steel, not the lining board, and the bracket has to clear the fascia when the awning is closed.
Usually not. The motor comes with a standard plug on a 1 m cable, so if there is a power point within a metre of the motor end of the cassette you plug it in and you are done. You only need an electrician if there is no power point nearby and you want one installed - the awning itself needs no wiring.
A hand crank is in the box. You can close the awning by hand while the power is off.
Yes, one is included. It closes the awning on its own when the wind picks up, so you do not have to be home to protect it.
Yes. Warm-white (3000K) 24 V LED strips run along the cassette and along each arm, 15 W per metre, and are powered from the unit, so there is no separate wiring to run. They are switched separately from the awning and are dimmable.
The AW01 is wind tested by Intertek to EN 13561 Class 3, equivalent to Beaufort force 6, roughly 39 to 49 km/h. That result applies to the tested 3000 x 1530 mm unit and does not extend to larger sizes. Retract it above that, and always in hail or snow.
The sensor retracts it in strong wind. Retract it yourself for storms or hail.

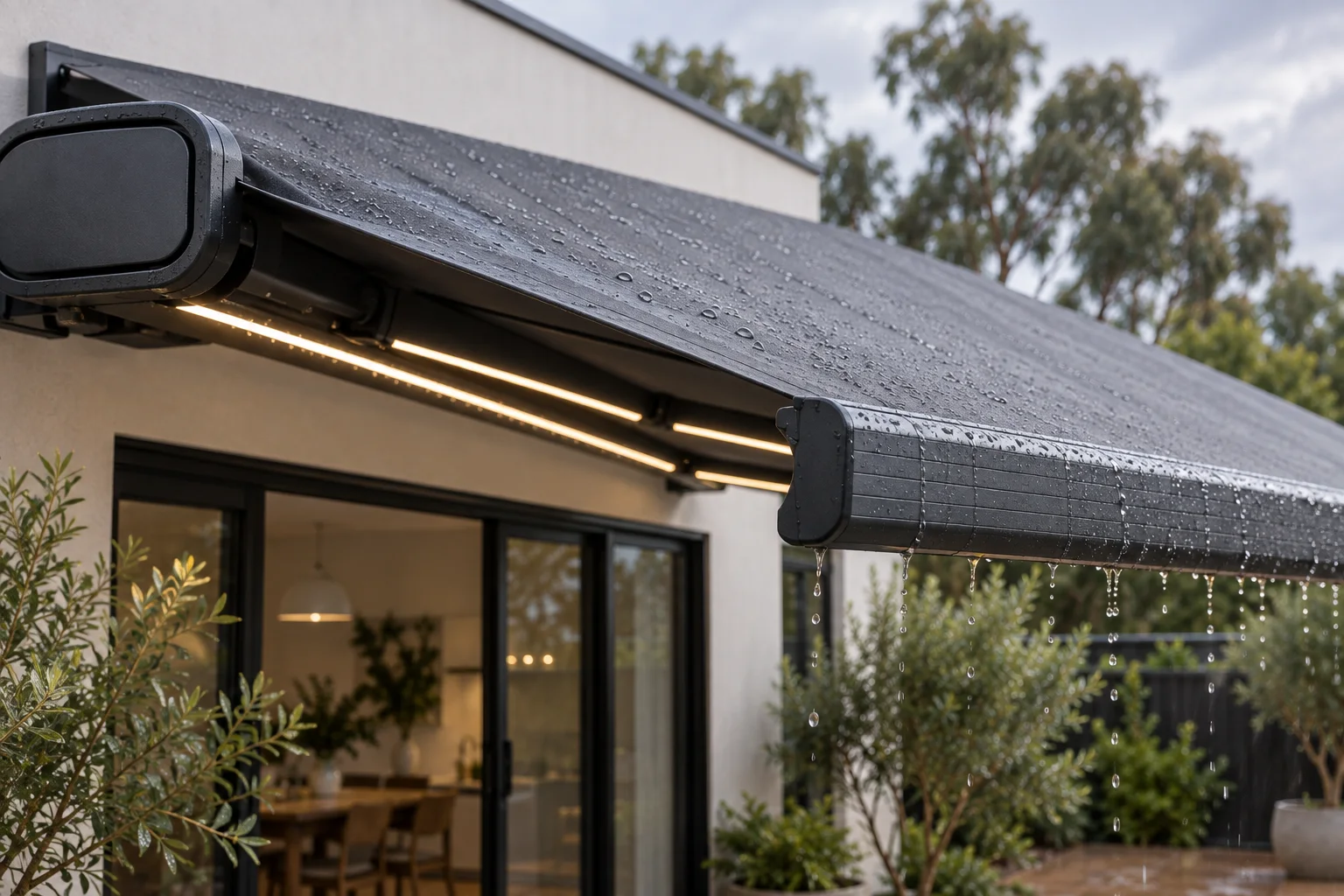

Yes. The motor is rated IP67, so rain does not harm it, and with the pitch set for run-off the water drains off the fabric. Retract it for storms, hail or strong wind - the wind sensor does that part for you.
Sauleda acrylic is dyed through the fibre, so the colour does not wash out of it. It is covered by our 3-year warranty like the rest of the awning, and with normal care you can expect 10 years or more from it.
Acrylic sheds water rather than holding it, and the cassette closes the fabric away dry. Clear leaves, debris and pooled water from the fabric regularly and it stays that way.
At least once a year, with a soft sponge or cloth, water and a neutral pH detergent. Do not use acidic or alkaline cleaners. A pressure washer is fine at a sensible distance with a wide nozzle, low pressure and moderate temperature. Let the fabric dry before retracting.
In very low temperatures the motor may stop operating. Do not force it. Wait for it to warm up rather than cranking against a stalled motor.
Six standard sizes: 2 x 1, 3 x 2, 4 x 3, 5 x 3.5, 6 x 3.5 and 7 x 3.5 m. Custom sizes are made to order, in 0.5 m steps of width.
Measure the area you want shaded, not just the wall. Pick a projection that covers your seating with a little to spare, then check the available width at the mounting height and that the front bar clears your doors and headroom at full projection. Our measuring guide has the details.
The whole awning, fabric included, is covered for 3 years from the date of delivery. The motor and electrical parts carry their manufacturers' warranties. The awning is built to last 10 years or more - that is its expected life, not a warranty term. Parts and re-covers are available after the warranty ends. Storm damage, misuse and unsuitable fixings are not covered.
A size and colour we hold in stock ships next business day - the stock line at the top of this page shows what is in stock right now. Everything else is made to order: 2 to 3 weeks up to 3 m wide and deep, 6 to 8 weeks above that, custom sizes included.
For a retractable awning on the wall of a private home in Melbourne, generally no. It changes if the property is in a heritage overlay, the awning overhangs a public footpath, or the building is strata or commercial. Check with your council or a building surveyor if any of those apply.
