Accessory
Awning Wind and Sun Sensor
From $150
All prices include GST.

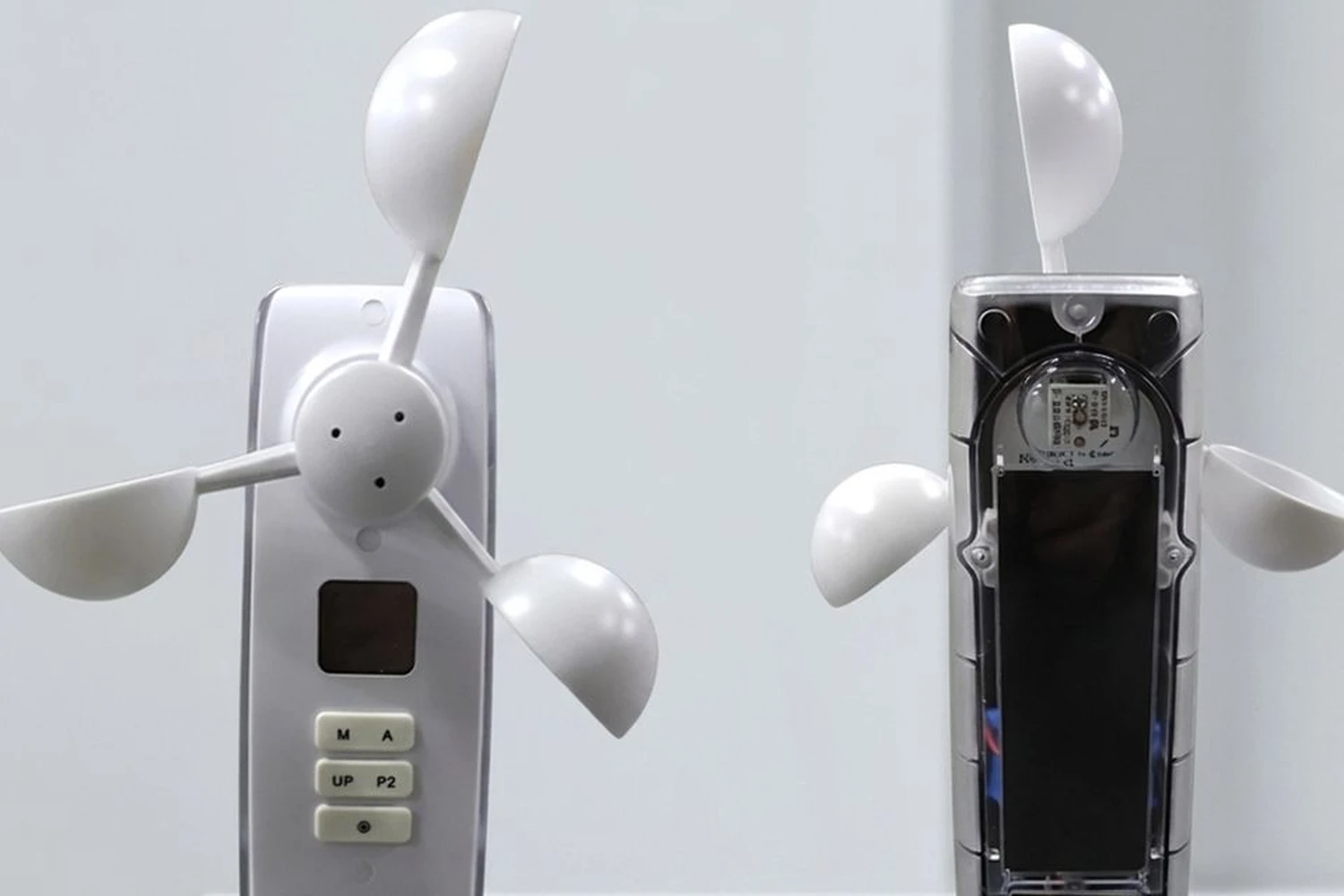

The DC8811 is the wireless weather sensor that lets a motorised awning look after itself. It fixes to the wall with two screws, charges from a solar panel on its back, and talks to the awning motor over the same 433 MHz radio your remote uses, so nothing is wired into the awning and nothing is wired into the house. Set a wind speed and the awning retracts on its own when the wind gets up, whether you are home or not. Set a light level and it extends when the sun comes round, then retracts again when the light drops away. Switch the rain function on and it brings the awning in when the detection grid on the back gets wet. Every AW01 Full Cassette Awning ships with one included - a $150 value that most suppliers charge extra for - and it also pairs with the B06 Premium Open-Arm Awning and any awning in our range running a Dooya E-type, ED-type or R-type tubular motor. A wind sensor is an aid, not a substitute for judgement: retract the awning by hand when a storm is forecast or when you are going away.
| Model | Dooya DC8811 |
|---|---|
| Type | Wireless wind, sun and rain sensor |
| Power | Rechargeable battery, solar panel on the rear face, USB Type-C charging |
| Input voltage | 3.7 V DC |
| Working current | Less than 20 mA |
| Radio frequency | 433.05 to 434.79 MHz |
| Radio range | 100 m in open air, 40 m inside a building |
| Security | Security code with 50 million combinations |
| Wind setting | 0 to 180 km/h |
| Light setting | 0 to 100 klux |
| Rain setting | On or off |
| Sampling | Wind every 2 seconds, light every 20 seconds. Wind takes priority |
| Working temperature | -10 °C to +60 °C |
| Mounting | Two screws, to a wall or a soffit |
| Works with | Dooya E-type, ED-type and R-type tubular motors; DC136, DC8807 and DC1600 receivers |
| Supplied with | Every AW01 Full Cassette Awning, free. Valued at $150 |
- Included free with every AW01 Full Cassette Awning - valued at $150
- Retracts the awning automatically above the wind speed you set
- Optional sun tracking and rain detection, both switchable
- Solar powered - nothing wired to the awning or the switchboard
- Fixes to the wall with two screws
- Also pairs with the B06 Premium Open-Arm Awning
- Wind setting 0 to 180 km/h, light setting 0 to 100 klux
- Installation and set-up guide free to download below
This is an electrical component and carries its manufacturer's warranty, separate from ASG's warranty on the product it fits.
Excludes damage from misuse, unauthorised modifications, extreme weather beyond design loads, or normal wear of moving components.
ASG is supply only, so the warranty covers the product as supplied - not installation. View full terms and conditions.
